PDF Publication Title:
Text from PDF Page: 005

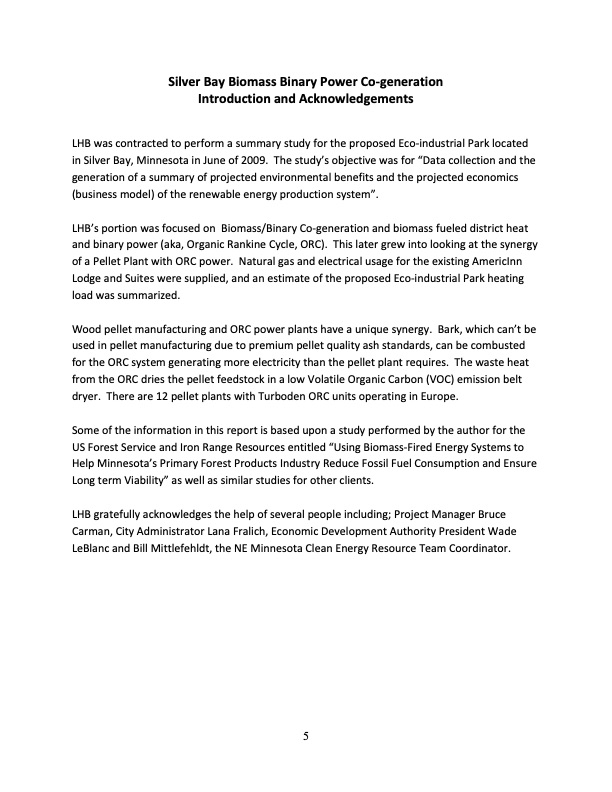

Silver Bay Biomass Binary Power Co‐generation Introduction and Acknowledgements LHB was contracted to perform a summary study for the proposed Eco‐industrial Park located in Silver Bay, Minnesota in June of 2009. The study’s objective was for “Data collection and the generation of a summary of projected environmental benefits and the projected economics (business model) of the renewable energy production system”. LHB’s portion was focused on Biomass/Binary Co‐generation and biomass fueled district heat and binary power (aka, Organic Rankine Cycle, ORC). This later grew into looking at the synergy of a Pellet Plant with ORC power. Natural gas and electrical usage for the existing AmericInn Lodge and Suites were supplied, and an estimate of the proposed Eco‐industrial Park heating load was summarized. Wood pellet manufacturing and ORC power plants have a unique synergy. Bark, which can’t be used in pellet manufacturing due to premium pellet quality ash standards, can be combusted for the ORC system generating more electricity than the pellet plant requires. The waste heat from the ORC dries the pellet feedstock in a low Volatile Organic Carbon (VOC) emission belt dryer. There are 12 pellet plants with Turboden ORC units operating in Europe. Some of the information in this report is based upon a study performed by the author for the US Forest Service and Iron Range Resources entitled “Using Biomass‐Fired Energy Systems to Help Minnesota’s Primary Forest Products Industry Reduce Fossil Fuel Consumption and Ensure Long term Viability” as well as similar studies for other clients. LHB gratefully acknowledges the help of several people including; Project Manager Bruce Carman, City Administrator Lana Fralich, Economic Development Authority President Wade LeBlanc and Bill Mittlefehldt, the NE Minnesota Clean Energy Resource Team Coordinator. 5PDF Image | Biomass Binary Power Co-generation
PDF Search Title:
Biomass Binary Power Co-generationOriginal File Name Searched:
Biomass_Binary_Report.pdfDIY PDF Search: Google It | Yahoo | Bing
