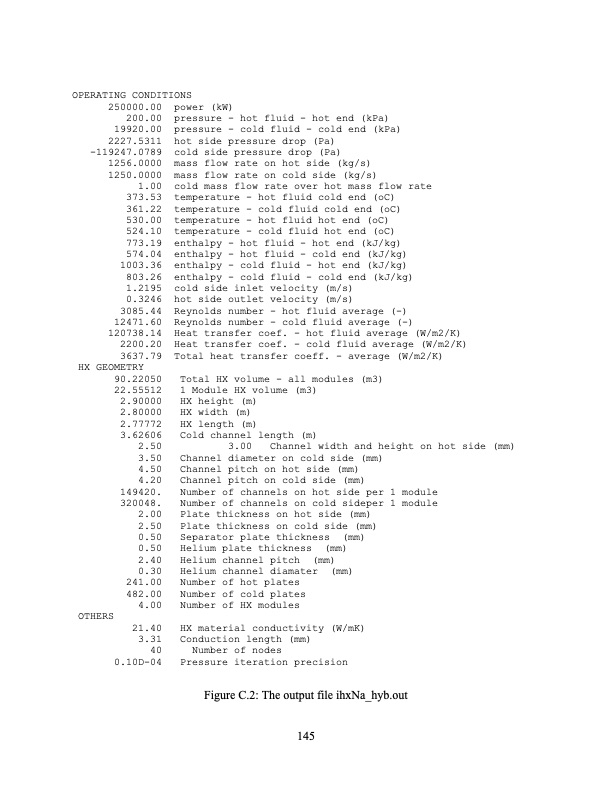

OPERATING CONDITIONS 250000.00 power (kW) 200.00 pressure - hot fluid - hot end (kPa) 19920.00 pressure - cold fluid - cold end (kPa) 2227.5311 hot side pressure drop (Pa) -119247.0789 cold side pressure drop (Pa) 1256.0000 mass flow rate on hot side (kg/s) 1250.0000 mass flow rate on cold side (kg/s) 1.00 cold mass flow rate over hot mass flow rate 373.53 temperature - hot fluid cold end (oC) 361.22 temperature - cold fluid cold end (oC) 530.00 temperature - hot fluid hot end (oC) 524.10 temperature - cold fluid hot end (oC) 773.19 enthalpy - hot fluid - hot end (kJ/kg) 574.04 enthalpy - hot fluid - cold end (kJ/kg) 1003.36 enthalpy - cold fluid - hot end (kJ/kg) 803.26 enthalpy - cold fluid - cold end (kJ/kg) 1.2195 cold side inlet velocity (m/s) 0.3246 hot side outlet velocity (m/s) 3085.44 Reynolds number - hot fluid average (-) 12471.60 Reynolds number - cold fluid average (-) 120738.14 Heat transfer coef. - hot fluid average (W/m2/K) 2200.20 Heat transfer coef. - cold fluid average (W/m2/K) 3637.79 Total heat transfer coeff. - average (W/m2/K) HX GEOMETRY 90.22050 Total HX volume - all modules (m3) 22.55512 1 Module HX volume (m3) 2.90000 HX height (m) 2.80000 HX width (m) 2.77772 HX length (m) 3.62606 Cold channel length (m) 2.50 3.00 Channel width and height on hot side (mm) 3.50 Channel diameter on cold side (mm) 4.50 Channel pitch on hot side (mm) 4.20 Channel pitch on cold side (mm) 149420. Number of channels on hot side per 1 module 320048. Number of channels on cold sideper 1 module 2.00 Plate thickness on hot side (mm) 2.50 Plate thickness on cold side (mm) 0.50 Separator plate thickness (mm) 0.50 Helium plate thickness (mm) 2.40 Helium channel pitch (mm) 0.30 Helium channel diamater (mm) 241.00 Number of hot plates 482.00 Number of cold plates OTHERS 4.00 Number of HX modules 21.40 HX material conductivity (W/mK) 3.31 Conduction length (mm) 40 Number of nodes 0.10D-04 Pressure iteration precision Figure C.2: The output file ihxNa_hyb.out 145PDF Image | Supercritical Carbon Dioxide Cycle Analysis
