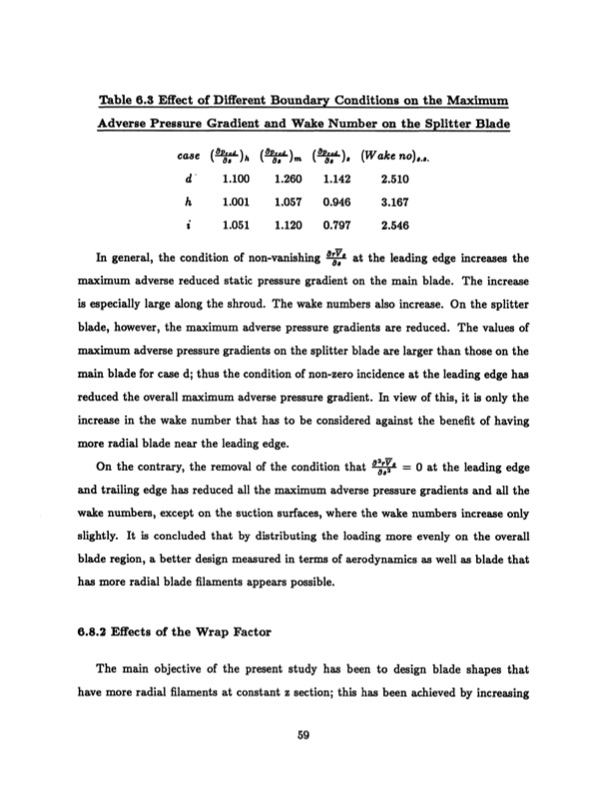

Table 6.3 Effect of Different Boundary Conditions on the Maximum Adverse Pressure Gradient and Wake Number on the Splitter Blade case ( d 1.100 ( Prd), (Wake no),.,. h 1.001 i 1.051 1.057 1.120 )h (rnd.)m 1.260 1.142 0.946 0.797 2.510 3.167 2.546 In general, the condition of non-vanishing maximum adverse reduced static pressure gradient on the main blade. The increase is especially large along the shroud. The wake numbers also increase. On the splitter blade, however, the maximum adverse pressure gradients are reduced. The values of maximum adverse pressure gradients on the splitter blade are larger than those on the main blade for case d; thus the condition of non-zero incidence at the leading edge has reduced the overall maximum adverse pressure gradient. In view of this, it is only the increase in the wake number that has to be considered against the benefit of having more radial blade near the leading edge. On the contrary, the removal of the condition that = 0 at the leading edge and trailing edge has reduced all the maximum adverse pressure gradients and all the wake numbers, except on the suction surfaces, where the wake numbers increase only slightly. It is concluded that by distributing the loading more evenly on the overall blade region, a better design measured in terms of aerodynamics as well as blade that has more radial blade filaments appears possible. 6.8.2 Effects of the Wrap Factor The main objective of the present study has been to design blade shapes that have more radial filaments at constant z section; this has been achieved by increasing at the leading edge increases thePDF Image | Radial Inflow Splitter Blades in Three-Dimensional
