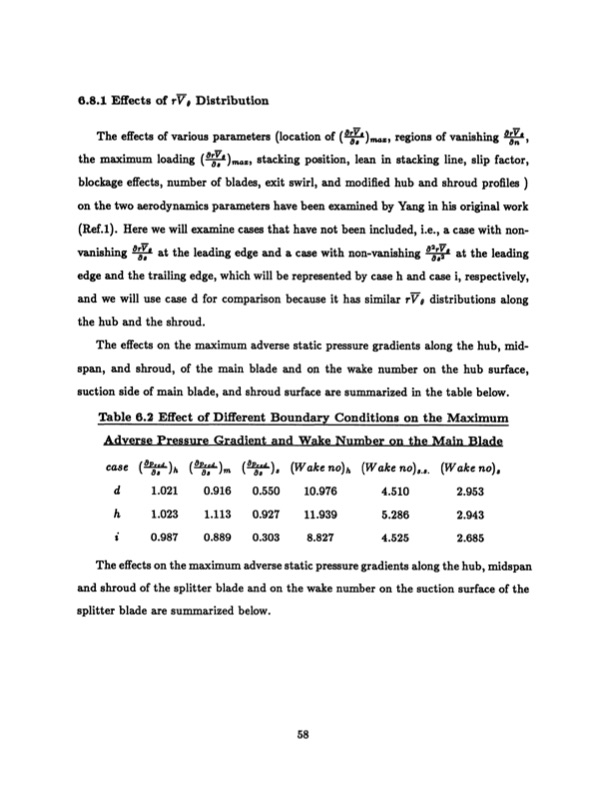

6.8.1 Effects of rV, Distribution The effects of various parameters (location of ( ),, regions of vanishing "', the maximum loading (~ )-,,,,stacking position, lean in stacking line, slip factor, blockage effects, number of blades, exit swirl, and modified hub and shroud profiles ) on the two aerodynamics parameters have been examined by Yang in his original work (Ref.1). Here we will examine cases that have not been included, i.e., a case with non- vanishing at the leading edge and a case with non-vanishing 9*V at the leading edge and the trailing edge, which will be represented by case h and case i, respectively, and we will use case d for comparison because it has similar rVe distributions along the hub and the shroud. The effects on the maximum adverse static pressure gradients along the hub, mid- span, and shroud, of the main blade and on the wake number on the hub surface, suction side of main blade, and shroud surface are summarized in the table below. Table 6.2 Effect of Different Boundary Conditions on the Maximum Adverse Pressure Gradient and Wake Number on the Main Blade case d h i ( )h 1.021 1.023 0.987 ( )m 0.916 1.113 0.889 ( d), 0.550 0.927 0.303 (Wake no)h 10.976 11.939 8.827 (Wake no),. 4.510 5.286 4.525 (Wake no), 2.953 2.943 2.685 The effects on the maximum adverse static pressure gradients along the hub, midspan and shroud of the splitter blade and on the wake number on the suction surface of the splitter blade are summarized below.PDF Image | Radial Inflow Splitter Blades in Three-Dimensional
