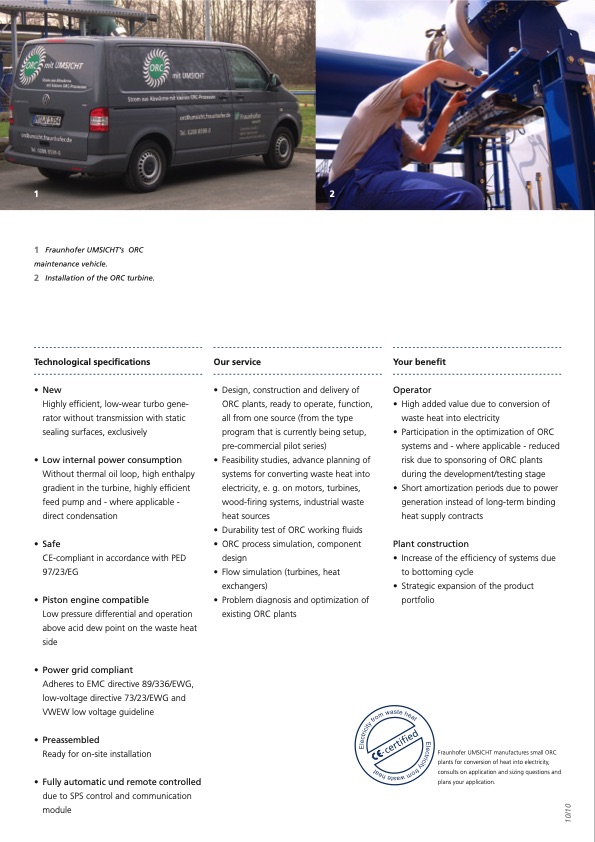

12 1 Fraunhofer UMSICHT‘s ORC maintenance vehicle. 2 Installation of the ORC turbine. Technological specifications • New Highly efficient, low-wear turbo gene- rator without transmission with static sealing surfaces, exclusively • Low internal power consumption Without thermal oil loop, high enthalpy gradient in the turbine, highly efficient feed pump and - where applicable - direct condensation • Safe CE-compliant in accordance with PED 97/23/EG • Piston engine compatible low pressure differential and operation above acid dew point on the waste heat side • Power grid compliant Adheres to EmC directive 89/336/EWG, low-voltage directive 73/23/EWG and VWEW low voltage guideline • Preassembled Ready for on-site installation • Fully automatic und remote controlled due to SPS control and communication module Our service • Design, construction and delivery of oRC plants, ready to operate, function, all from one source (from the type program that is currently being setup, pre-commercial pilot series) • Feasibility studies, advance planning of systems for converting waste heat into electricity, e. g. on motors, turbines, wood-firing systems, industrial waste heat sources • Durability test of ORC working fluids • ORC process simulation, component design • Flow simulation (turbines, heat exchangers) • Problem diagnosis and optimization of existing oRC plants Your benefit Operator • High added value due to conversion of waste heat into electricity • Participation in the optimization of ORC systems and - where applicable - reduced risk due to sponsoring of oRC plants during the development/testing stage • Short amortization periods due to power generation instead of long-term binding heat supply contracts Plant construction • Increase of the efficiency of systems due to bottoming cycle • Strategic expansion of the product portfolio Fraunhofer UMSICHT manufactures small ORC plants for conversion of heat into electricity, consults on application and sizing questions and plans your application. 10/10PDF Image | ORC PLANTS 20-120 kWeL
