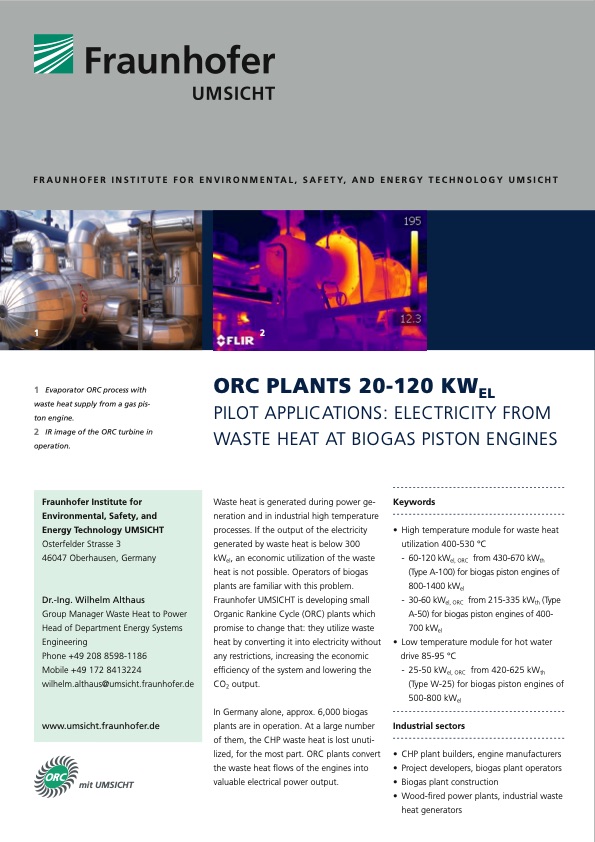

Text from PDF Page: 001
FRAUNHOFER INSTITUTE FOR ENvIRONmENTAl, SAFETy, ANd ENERgy TEcHNOlOgy UmSIcHT 12 1 Evaporator ORC process with waste heat supply from a gas pis- ton engine. 2 IR image of the ORC turbine in operation. ORC PLANTS 20-120 kWeL Pilot APPliCAtioNS: ElECtRiCitY fRom WAStE HEAt At BioGAS PiStoN ENGiNES Fraunhofer Institute for Environmental, Safety, and Energy Technology UmSIcHT osterfelder Strasse 3 46047 oberhausen, Germany Dr.-Ing. Wilhelm Althaus Group manager Waste Heat to Power Head of Department Energy Systems Engineering Phone +49 208 8598-1186 mobile +49 172 8413224 wilhelm.althaus@umsicht.fraunhofer.de www.umsicht.fraunhofer.de ORC mit UMSICHT Waste heat is generated during power ge- neration and in industrial high temperature processes. if the output of the electricity generated by waste heat is below 300 kWel, an economic utilization of the waste heat is not possible. operators of biogas plants are familiar with this problem. fraunhofer UmSiCHt is developing small organic Rankine Cycle (oRC) plants which promise to change that: they utilize waste heat by converting it into electricity without any restrictions, increasing the economic efficiency of the system and lowering the Co2 output. in Germany alone, approx. 6,000 biogas plants are in operation. At a large number of them, the CHP waste heat is lost unuti- lized, for the most part. oRC plants convert the waste heat flows of the engines into valuable electrical power output. Keywords • High temperature module for waste heat utilization 400-530 °C - 60-120 kWel, oRC from 430-670 kWth (type A-100) for biogas piston engines of 800-1400 kWel - 30-60 kWel, oRC from 215-335 kWth (type A-50) for biogas piston engines of 400- 700 kWel • Low temperature module for hot water drive 85-95 °C - 25-50 kWel, oRC from 420-625 kWth (type W-25) for biogas piston engines of 500-800 kWel Industrial sectors • CHP plant builders, engine manufacturers • Project developers, biogas plant operators • Biogas plant construction • Wood-fired power plants, industrial waste heat generatorsPDF Image | ORC PLANTS 20-120 kWeL
