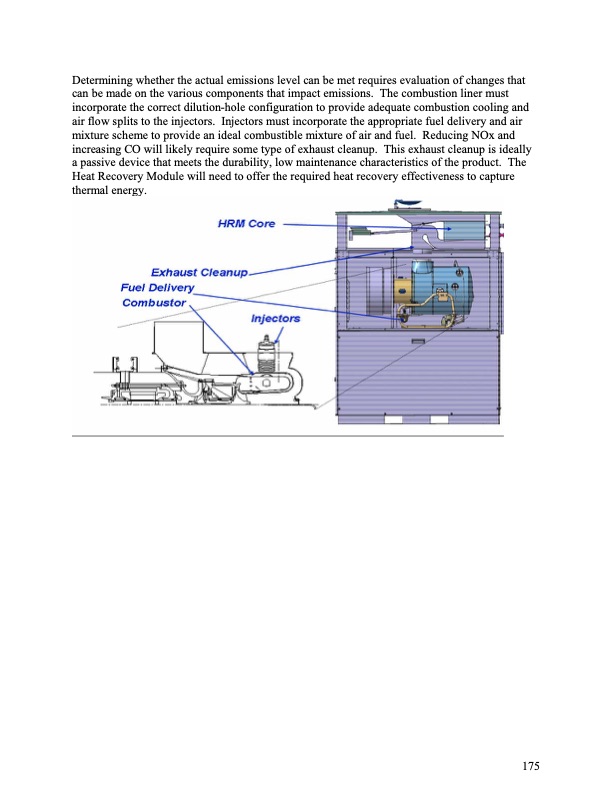

Determining whether the actual emissions level can be met requires evaluation of changes that can be made on the various components that impact emissions. The combustion liner must incorporate the correct dilution-hole configuration to provide adequate combustion cooling and air flow splits to the injectors. Injectors must incorporate the appropriate fuel delivery and air mixture scheme to provide an ideal combustible mixture of air and fuel. Reducing NOx and increasing CO will likely require some type of exhaust cleanup. This exhaust cleanup is ideally a passive device that meets the durability, low maintenance characteristics of the product. The Heat Recovery Module will need to offer the required heat recovery effectiveness to capture thermal energy. 175PDF Image | Final Technical Report Advanced MicroTurbine System (AMTS) -C200 MicroTurbine -Ultra-Low Emissions MicroTurbine
