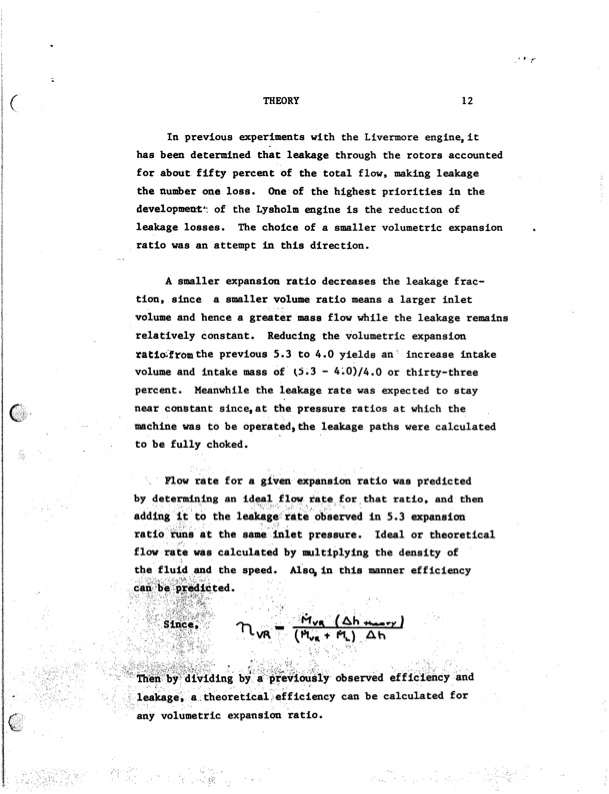

c. any volumetric expansion ratio. THEORY 12 In pr-vious experiments with the Livermore engine,it has been determined that leakage through the rotors accounted for about fifty percent of the total flow, making leakage the number one loss. One of the highest priorities in the development? of the Lysholm engine is the reduction of leakage losses. The choice of a smaller volumetric expansion ratio was an attempt in this direction. A smaller expansion r a t i o decreases the leakage frac- tion, since a smaller volume ratio means a larger inlet volume and hence a greater mass flow while the leakage remains relatively constant. Reducing the volumetric expansion zatiafromthe previous 5.3 to 4.0 yields an- increase intake volume and intake mass of (5.3 -4;0)/4.0or thirty-three percent. Meanwhile the leakage rate was expected to stay near constant since,at the pressure ratios a t which the machine was to be operated,the leakage paths were calculated to be fully choked. Flow rate for a given expansion ratio was predicted or that ratio, and then ed i n 5.3 expansion Ideal or theoretical flow rate was calculated by multiplying the density of the fluid and the speed. Also,in this manner efficiency .PDF Image | Expansion Ratio of a Lysholm Screw Expander
