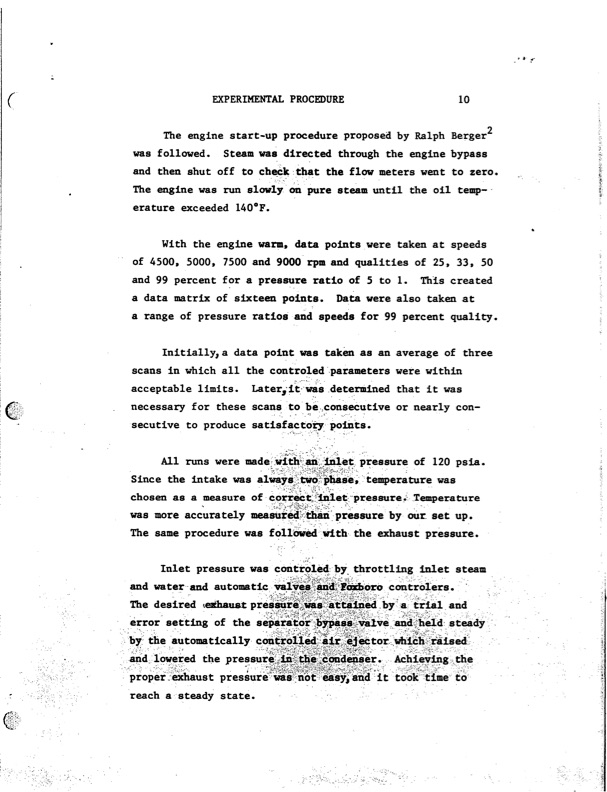

EXPERIMENTAL PROCEDURE 10 The engine start-up procedure proposed by Ralph Berger2 was followed. Steam was directed through the engine bypass and then shut off to check that the flow meters went to zero. The engine was run slowlyonpure steam until the oil temp- erature exceeded 140'F. With the engine warm, data points were taken at speeds of 4500, 5000, 7500 and 9000 rpm and qualities of 25, 33, 50 and 99 percent for a pressure ratio of 5 to 1. This created a data matrix of sixteen points. Data were also taken at a range of pressure ratios and speeds for 99 percent quality. Initially,a data point was taken as an average of three scans i n which a l l the controled parameters were within acceptable limits. Later;it was determined that it was necessary for these scans to be ,consecutive or nearly con- secutive to produce satisfactory points. . All runs were made Since the intake was a1 chosen as a measure of was more accurately mea The same procedure was followed with the exhaust pressure. Inlet pressure was and water and automati The desired ~enlhauktpr error setting of the s the automatically reach a steady state. pressureof120psia. , temperature was pressure. Temperature ssureby our set up.PDF Image | Expansion Ratio of a Lysholm Screw Expander
