PDF Publication Title:

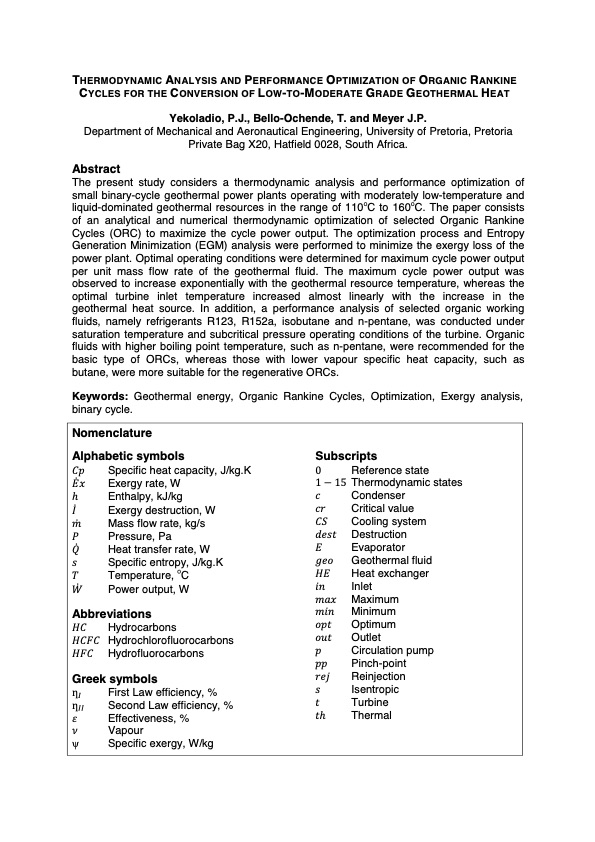

Text from PDF Page: 001
THERMODYNAMIC ANALYSIS AND PERFORMANCE OPTIMIZATION OF ORGANIC RANKINE CYCLES FOR THE CONVERSION OF LOW-TO-MODERATE GRADE GEOTHERMAL HEAT Yekoladio, P.J., Bello-Ochende, T. and Meyer J.P. Department of Mechanical and Aeronautical Engineering, University of Pretoria, Pretoria Private Bag X20, Hatfield 0028, South Africa. Abstract The present study considers a thermodynamic analysis and performance optimization of small binary-cycle geothermal power plants operating with moderately low-temperature and liquid-dominated geothermal resources in the range of 110oC to 160oC. The paper consists of an analytical and numerical thermodynamic optimization of selected Organic Rankine Cycles (ORC) to maximize the cycle power output. The optimization process and Entropy Generation Minimization (EGM) analysis were performed to minimize the exergy loss of the power plant. Optimal operating conditions were determined for maximum cycle power output per unit mass flow rate of the geothermal fluid. The maximum cycle power output was observed to increase exponentially with the geothermal resource temperature, whereas the optimal turbine inlet temperature increased almost linearly with the increase in the geothermal heat source. In addition, a performance analysis of selected organic working fluids, namely refrigerants R123, R152a, isobutane and n-pentane, was conducted under saturation temperature and subcritical pressure operating conditions of the turbine. Organic fluids with higher boiling point temperature, such as n-pentane, were recommended for the basic type of ORCs, whereas those with lower vapour specific heat capacity, such as butane, were more suitable for the regenerative ORCs. Keywords: Geothermal energy, Organic Rankine Cycles, Optimization, Exergy analysis, binary cycle. Nomenclature Alphabetic symbols Subscripts Specific heat capacity, J/kg.K Exergy rate, W Enthalpy, kJ/kg Exergy destruction, W Mass flow rate, kg/s Pressure, Pa Heat transfer rate, W Specific entropy, J/kg.K T emperature, oC Power output, W Abbreviations Hydrocarbons Hydrochlorofluorocarbons Hydrofluorocarbons Greek symbols ƞ First Law efficiency, % ƞ Second Law efficiency, % Effectiveness, % Vapour ψ Specific exergy, W/kg 0 Reference state 115 Thermodynamic states Condenser Critical value Cooling system Destruction Evaporator Geothermal fluid Heat exchanger Inlet Maximum Minimum Optimum Outlet Circulation pump Pinch-point Reinjection Isentropic Turbine ThermalPDF Image | THERMODYNAMIC ANALYSIS AND PERFORMANCE OPTIMIZATION OF ORGANIC RANKINE CYCLES FOR THE CONVERSION OF LOW-TO-MODERATE GRADE GEOTHERMAL HEAT
PDF Search Title:
THERMODYNAMIC ANALYSIS AND PERFORMANCE OPTIMIZATION OF ORGANIC RANKINE CYCLES FOR THE CONVERSION OF LOW-TO-MODERATE GRADE GEOTHERMAL HEATOriginal File Name Searched:
4_Yekoladio.pdfDIY PDF Search: Google It | Yahoo | Bing
