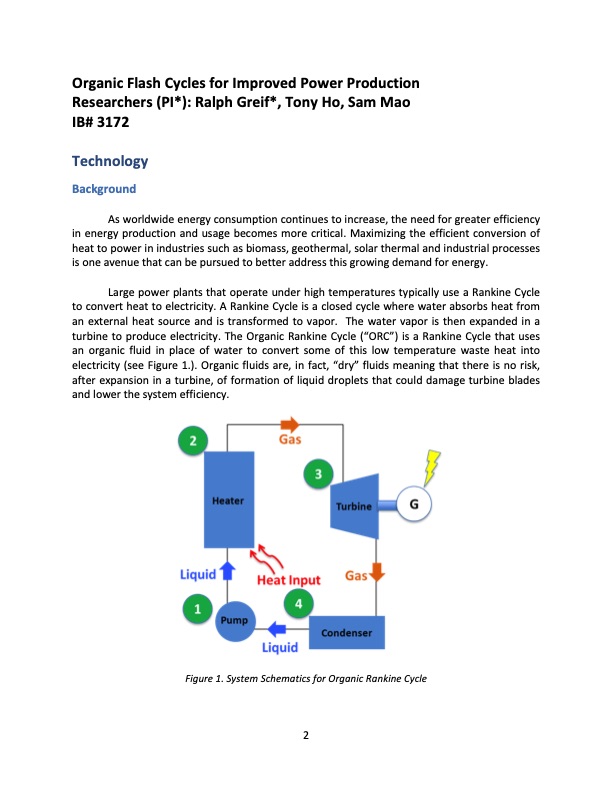

Text from PDF Page: 002
Organic Flash Cycles for Improved Power Production Researchers (PI*): Ralph Greif*, Tony Ho, Sam Mao IB# 3172 Technology Background As worldwide energy consumption continues to increase, the need for greater efficiency in energy production and usage becomes more critical. Maximizing the efficient conversion of heat to power in industries such as biomass, geothermal, solar thermal and industrial processes is one avenue that can be pursued to better address this growing demand for energy. Large power plants that operate under high temperatures typically use a Rankine Cycle to convert heat to electricity. A Rankine Cycle is a closed cycle where water absorbs heat from an external heat source and is transformed to vapor. The water vapor is then expanded in a turbine to produce electricity. The Organic Rankine Cycle (“ORC”) is a Rankine Cycle that uses an organic fluid in place of water to convert some of this low temperature waste heat into electricity (see Figure 1.). Organic fluids are, in fact, “dry” fluids meaning that there is no risk, after expansion in a turbine, of formation of liquid droplets that could damage turbine blades and lower the system efficiency. Figure 1. System Schematics for Organic Rankine Cycle 2PDF Image | Thermal Efficiency from Organic Flash Cycle
