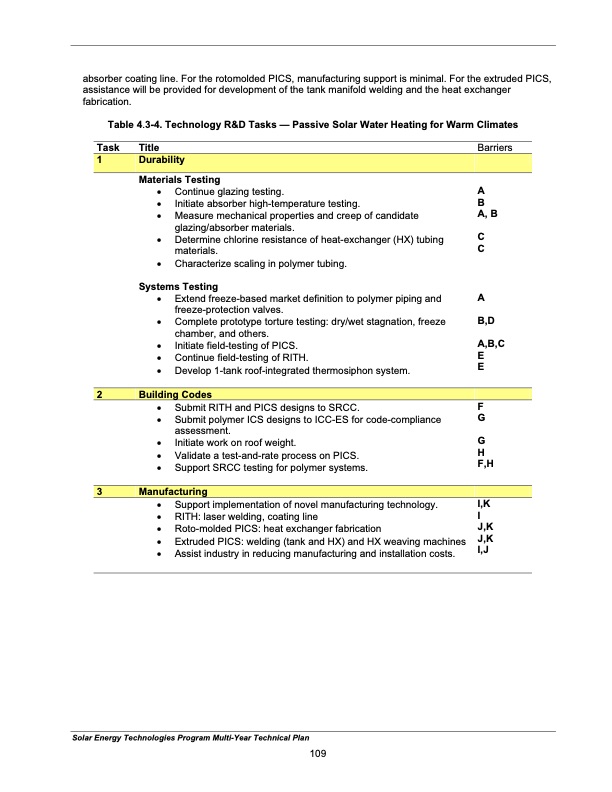

absorber coating line. For the rotomolded PICS, manufacturing support is minimal. For the extruded PICS, assistance will be provided for development of the tank manifold welding and the heat exchanger fabrication. Table 4.3-4. Technology R&D Tasks — Passive Solar Water Heating for Warm Climates Task Title Barriers 1 Durability Materials Testing • Continue glazing testing. A • Initiate absorber high-temperature testing. • Measure mechanical properties and creep of candidate glazing/absorber materials. • Determine chlorine resistance of heat-exchanger (HX) tubing materials. • Characterize scaling in polymer tubing. B A, B C C Systems Testing • Extend freeze-based market definition to polymer piping and A freeze-protection valves. • Complete prototype torture testing: dry/wet stagnation, freeze chamber, and others. • Initiate field-testing of PICS. • Continue field-testing of RITH. • Develop 1-tank roof-integrated thermosiphon system. 2 Building Codes B,D A,B,C E E • Submit RITH and PICS designs to SRCC. F • Submit polymer ICS designs to ICC-ES for code-compliance assessment. • Initiate work on roof weight. • Validate a test-and-rate process on PICS. • Support SRCC testing for polymer systems. 3 Manufacturing G G H F,H • Support implementation of novel manufacturing technology. I,K I J,K J,K I,J • RITH: laser welding, coating line • Roto-molded PICS: heat exchanger fabrication • Extruded PICS: welding (tank and HX) and HX weaving machines • Assist industry in reducing manufacturing and installation costs. Solar Energy Technologies Program Multi-Year Technical Plan 109PDF Image | Solar Energy Technologies Program
