PDF Publication Title:
Text from PDF Page: 002

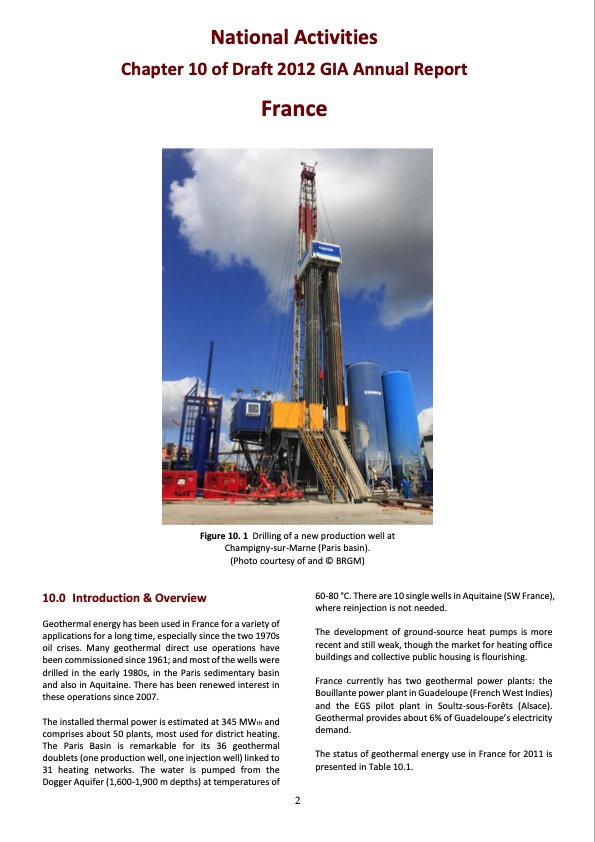

National Activities Chapter 10 of Draft 2012 GIA Annual Report France Figure 10. 1 Drilling of a new production well at Champigny-sur-Marne (Paris basin). (Photo courtesy of and © BRGM) 10.0 Introduction&Overview Geothermal energy has been used in France for a variety of applications for a long time, especially since the two 1970s oil crises. Many geothermal direct use operations have been commissioned since 1961; and most of the wells were drilled in the early 1980s, in the Paris sedimentary basin and also in Aquitaine. There has been renewed interest in these operations since 2007. The installed thermal power is estimated at 345 MWth and comprises about 50 plants, most used for district heating. The Paris Basin is remarkable for its 36 geothermal doublets (one production well, one injection well) linked to 31 heating networks. The water is pumped from the Dogger Aquifer (1,600-1,900 m depths) at temperatures of 60-80 °C. There are 10 single wells in Aquitaine (SW France), where reinjection is not needed. The development of ground-source heat pumps is more recent and still weak, though the market for heating office buildings and collective public housing is flourishing. France currently has two geothermal power plants: the Bouillante power plant in Guadeloupe (French West Indies) and the EGS pilot plant in Soultz-sous-Forêts (Alsace). Geothermal provides about 6% of Guadeloupe’s electricity demand. The status of geothermal energy use in France for 2011 is presented in Table 10.1. 2PDF Image | IEA Geothermal Implementing Agreement
