PDF Publication Title:
Text from PDF Page: 003

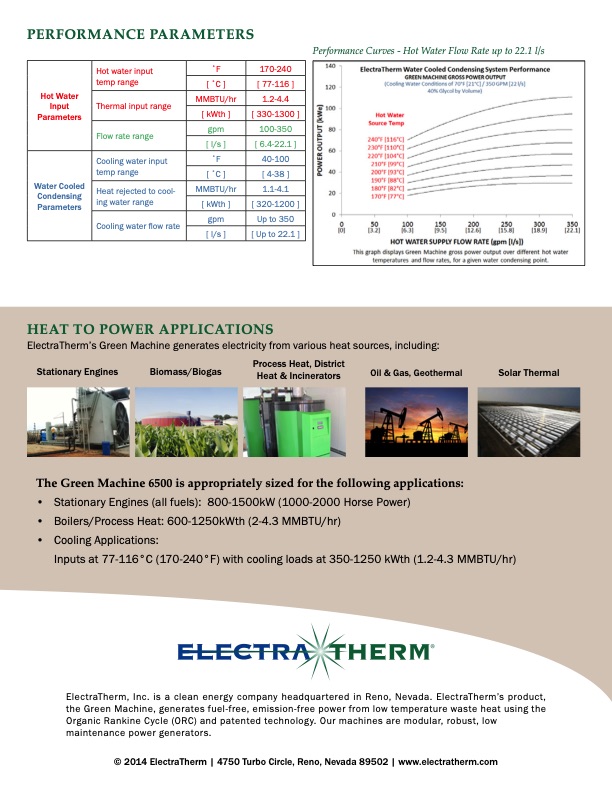

Hot Water Input Parameters Hot water input temp range ̊F 170-240 [ ̊C ] [ 77-116 ] Thermal input range MMBTU/hr 1.2-4.4 [ kWth ] [ 330-1300 ] Flow rate range gpm 100-350 [ l/s ] [ 6.4-22.1 ] Water Cooled Condensing Parameters Cooling water input temp range ̊F 40-100 [ ̊C ] [ 4-38 ] Heat rejected to cool- ing water range MMBTU/hr 1.1-4.1 [ kWth ] [ 320-1200 ] Cooling water flow rate gpm Up to 350 [ l/s ] [ Up to 22.1 ] The Green Machine 6500 is appropriately sized for the following applications: • Stationary Engines (all fuels): 800-1500kW (1000-2000 Horse Power) PERFORMANCE PARAMETERS Performance Curves - Hot Water Flow Rate up to 22.1 l/s HEAT TO POWER APPLICATIONS ElectraTherm’s Green Machine generates electricity from various heat sources, including: Stationary Engines Biomass/Biogas Process Heat, District Oil & Gas, Geothermal Heat & Incinerators • Boilers/Process Heat: 600-1250kWth (2-4.3 MMBTU/hr) • Cooling Applications: Solar Thermal Inputs at 77-116°C (170-240°F) with cooling loads at 350-1250 kWth (1.2-4.3 MMBTU/hr) ElectraTherm, Inc. is a clean energy company headquartered in Reno, Nevada. ElectraTherm’s product, the Green Machine, generates fuel-free, emission-free power from low temperature waste heat using the Organic Rankine Cycle (ORC) and patented technology. Our machines are modular, robust, low maintenance power generators. © 2014 ElectraTherm | 4750 Turbo Circle, Reno, Nevada 89502 | www.electratherm.comPDF Image | Green Machine 6500
PDF Search Title:
Green Machine 6500Original File Name Searched:
6500Brochure20140321.pdfDIY PDF Search: Google It | Yahoo | Bing
