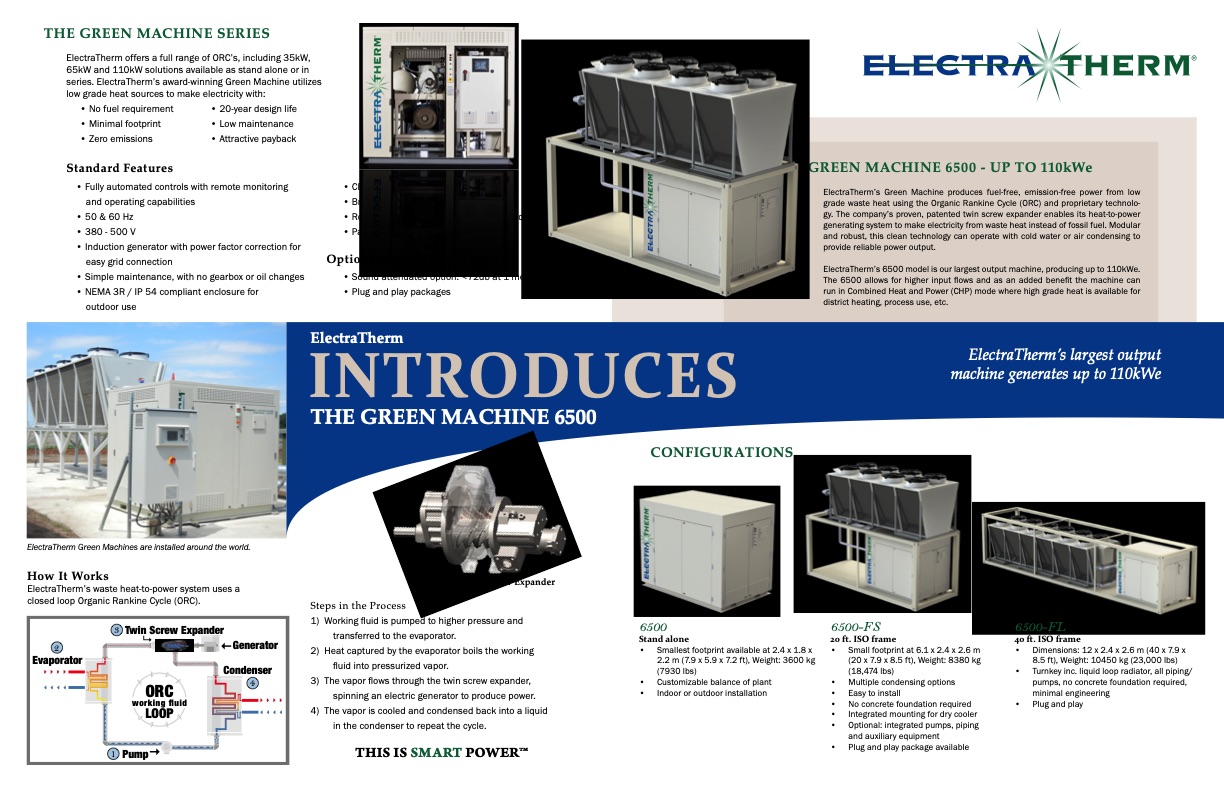

THE GREEN MACHINE SERIES ElectraTherm offers a full range of ORC’s, including 35kW, 65kW and 110kW solutions available as stand alone or in series. ElectraTherm’s award-winning Green Machine utilizes low grade heat sources to make electricity with: • No fuel requirement • Minimal footprint • Zero emissions Standard Features • 20-year design life • Low maintenance • Attractive payback • Fully automated controls with remote monitoring and operating capabilities • 50 & 60 Hz • 380 - 500 V • Induction generator with power factor correction for easy grid connection • Simple maintenance, with no gearbox or oil changes • NEMA 3R / IP 54 compliant enclosure for outdoor use ElectraTherm Green Machines are installed around the world. How It Works ElectraTherm’s waste heat-to-power system uses a closed loop Organic Rankine Cycle (ORC). • CE certified • Brazed plate heat exchangers • Robust, Twin Screw Expander power block • Patented in-process lubrication Options Available • Sound attenuated option: <72db at 1 meter • Plug and play packages GREEN MACHINE 6500 - UP TO 110kWe ElectraTherm’s Green Machine produces fuel-free, emission-free power from low grade waste heat using the Organic Rankine Cycle (ORC) and proprietary technolo- gy. The company’s proven, patented twin screw expander enables its heat-to-power generating system to make electricity from waste heat instead of fossil fuel. Modular and robust, this clean technology can operate with cold water or air condensing to provide reliable power output. ElectraTherm’s 6500 model is our largest output machine, producing up to 110kWe. The 6500 allows for higher input flows and as an added benefit the machine can run in Combined Heat and Power (CHP) mode where high grade heat is available for district heating, process use, etc. ElectraTherm INTRODUCES ElectraTherm’s largest output machine generates up to 110kWe THE GREEN MACHINE 6500 Twin Screw Expander Steps in the Process 1) Working fluid is pumped to higher pressure and transferred to the evaporator. 2) Heat captured by the evaporator boils the working fluid into pressurized vapor. 3) The vapor flows through the twin screw expander, spinning an electric generator to produce power. 4) The vapor is cooled and condensed back into a liquid in the condenser to repeat the cycle. THIS IS SMART POWERTM CONFIGURATIONS 2 Evaporator 3 Twin Screw Expander Generator Condenser 4 ORC working fluid LOOP 1 Pump 6500 Stand alone • Smallest footprint available at 2.4 x 1.8 x 2.2 m (7.9 x 5.9 x 7.2 ft), Weight: 3600 kg (7930 lbs) • Customizable balance of plant • Indoor or outdoor installation 6500-FS 20 ft. ISO frame • Small footprint at 6.1 x 2.4 x 2.6 m (20 x 7.9 x 8.5 ft), Weight: 8380 kg (18,474 lbs) • Multiple condensing options • Easy to install • No concrete foundation required • Integrated mounting for dry cooler • Optional: integrated pumps, piping and auxiliary equipment • Plug and play package available 6500-FL 40 ft. ISO frame • Dimensions: 12 x 2.4 x 2.6 m (40 x 7.9 x 8.5 ft), Weight: 10450 kg (23,000 lbs) • Turnkey inc. liquid loop radiator, all piping/ pumps, no concrete foundation required, minimal engineering • Plug and play = PDF Image | Green Machine 6500
