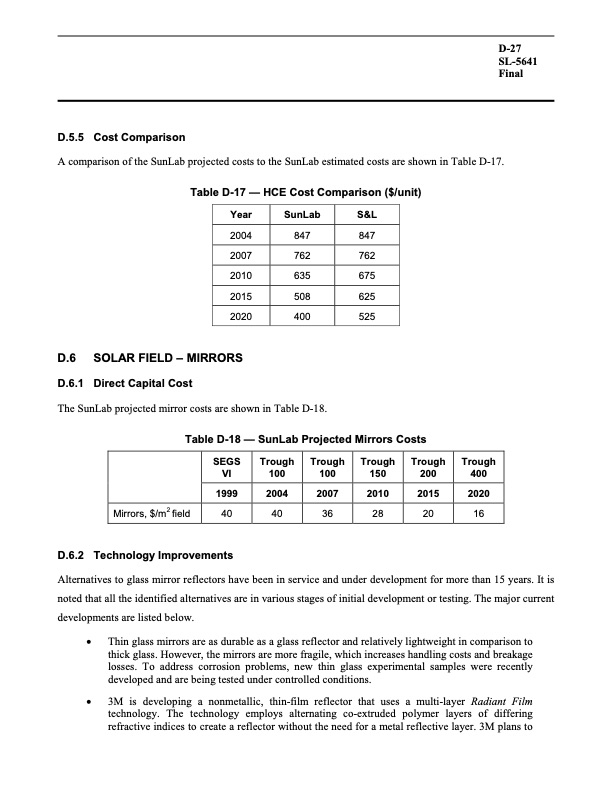

A comparison of the SunLab projected costs to the SunLab estimated costs are shown in Table D-17. Table D-17 — HCE Cost Comparison ($/unit) Year SunLab S&L 2004 847 847 2007 762 762 2010 635 675 2015 508 625 2020 400 525 D.6 SOLAR FIELD – MIRRORS D.6.1 Direct Capital Cost The SunLab projected mirror costs are shown in Table D-18. Table D-18 — SunLab Projected Mirrors Costs SEGS Trough Trough VI 100 100 1999 2004 2007 Mirrors, $/m2 field 40 40 36 D.6.2 Technology Improvements D-27 SL-5641 Final D.5.5 Cost Comparison Trough Trough 150 200 400 Trough 2010 2015 2020 28 20 16 Alternatives to glass mirror reflectors have been in service and under development for more than 15 years. It is noted that all the identified alternatives are in various stages of initial development or testing. The major current developments are listed below. • Thin glass mirrors are as durable as a glass reflector and relatively lightweight in comparison to thick glass. However, the mirrors are more fragile, which increases handling costs and breakage losses. To address corrosion problems, new thin glass experimental samples were recently developed and are being tested under controlled conditions. • 3M is developing a nonmetallic, thin-film reflector that uses a multi-layer Radiant Film technology. The technology employs alternating co-extruded polymer layers of differing refractive indices to create a reflector without the need for a metal reflective layer. 3M plans toPDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
