PDF Publication Title:
Text from PDF Page: 106

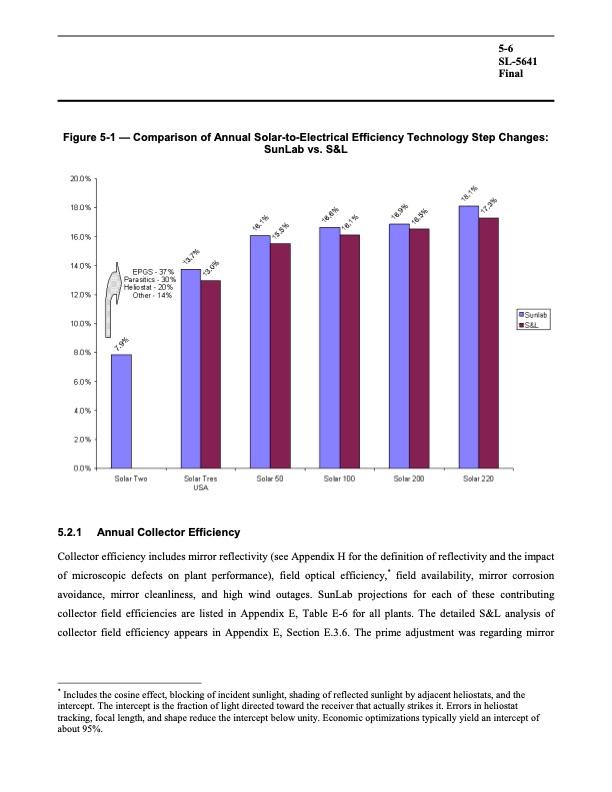

5-6 SL-5641 Final Figure 5-1 — Comparison of Annual Solar-to-Electrical Efficiency Technology Step Changes: SunLab vs. S&L 5.2.1 Annual Collector Efficiency Collector efficiency includes mirror reflectivity (see Appendix H for the definition of reflectivity and the impact of microscopic defects on plant performance), field optical efficiency,* field availability, mirror corrosion avoidance, mirror cleanliness, and high wind outages. SunLab projections for each of these contributing collector field efficiencies are listed in Appendix E, Table E-6 for all plants. The detailed S&L analysis of collector field efficiency appears in Appendix E, Section E.3.6. The prime adjustment was regarding mirror * Includes the cosine effect, blocking of incident sunlight, shading of reflected sunlight by adjacent heliostats, and the intercept. The intercept is the fraction of light directed toward the receiver that actually strikes it. Errors in heliostat tracking, focal length, and shape reduce the intercept below unity. Economic optimizations typically yield an intercept of about 95%.PDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
PDF Search Title:
Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance ForecastsOriginal File Name Searched:
34440.pdfDIY PDF Search: Google It | Yahoo | Bing
