PDF Publication Title:
Text from PDF Page: 053

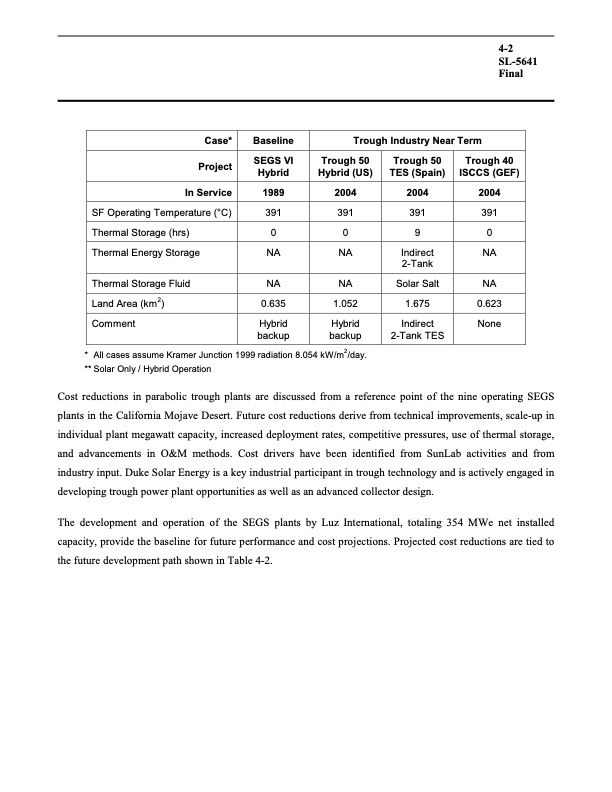

Case* Project In Service SF Operating Temperature (°C) Thermal Storage (hrs) Thermal Energy Storage Thermal Storage Fluid Land Area (km2) Comment Baseline SEGS VI Hybrid 1989 391 0 NA NA 0.635 Hybrid backup Trough Industry Near Term 4-2 SL-5641 Final Trough 50 Hybrid (US) 2004 391 0 NA NA 1.052 Hybrid backup Trough 50 TES (Spain) 2004 391 9 Indirect 2-Tank Solar Salt 1.675 Indirect 2-Tank TES Trough 40 ISCCS (GEF) 2004 391 0 NA NA 0.623 None * All cases assume Kramer Junction 1999 radiation 8.054 kW/m2/day. ** Solar Only / Hybrid Operation Cost reductions in parabolic trough plants are discussed from a reference point of the nine operating SEGS plants in the California Mojave Desert. Future cost reductions derive from technical improvements, scale-up in individual plant megawatt capacity, increased deployment rates, competitive pressures, use of thermal storage, and advancements in O&M methods. Cost drivers have been identified from SunLab activities and from industry input. Duke Solar Energy is a key industrial participant in trough technology and is actively engaged in developing trough power plant opportunities as well as an advanced collector design. The development and operation of the SEGS plants by Luz International, totaling 354 MWe net installed capacity, provide the baseline for future performance and cost projections. Projected cost reductions are tied to the future development path shown in Table 4-2.PDF Image | Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance Forecasts
PDF Search Title:
Assessment of Parabolic Trough and Power Tower Solar Technology Cost and Performance ForecastsOriginal File Name Searched:
