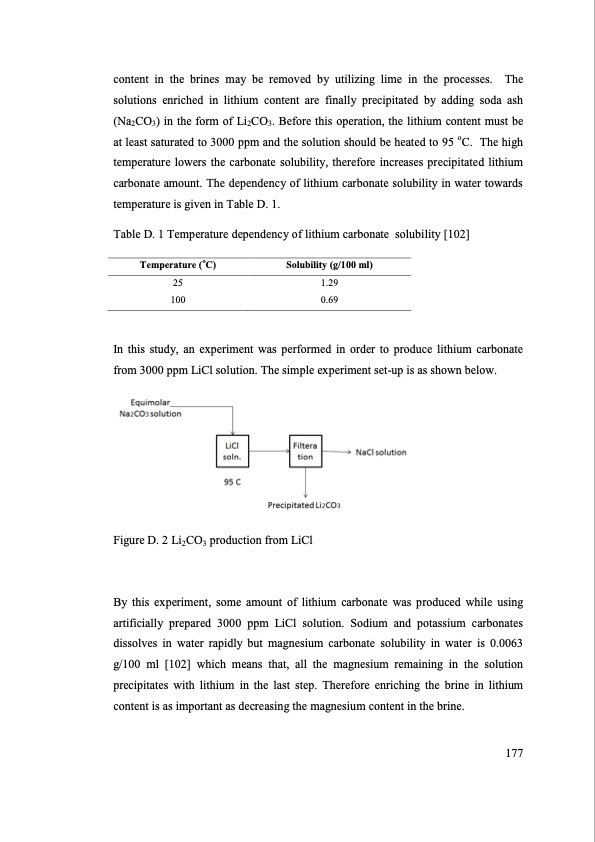

content in the brines may be removed by utilizing lime in the processes. The solutions enriched in lithium content are finally precipitated by adding soda ash (Na2CO3) in the form of Li2CO3. Before this operation, the lithium content must be at least saturated to 3000 ppm and the solution should be heated to 95 oC. The high temperature lowers the carbonate solubility, therefore increases precipitated lithium carbonate amount. The dependency of lithium carbonate solubility in water towards temperature is given in Table D. 1. Table D. 1 Temperature dependency of lithium carbonate solubility [102] Temperature (oC) 25 100 Solubility (g/100 ml) 1.29 0.69 In this study, an experiment was performed in order to produce lithium carbonate from 3000 ppm LiCl solution. The simple experiment set-up is as shown below. Figure D. 2 Li2CO3 production from LiCl By this experiment, some amount of lithium carbonate was produced while using artificially prepared 3000 ppm LiCl solution. Sodium and potassium carbonates dissolves in water rapidly but magnesium carbonate solubility in water is 0.0063 g/100 ml [102] which means that, all the magnesium remaining in the solution precipitates with lithium in the last step. Therefore enriching the brine in lithium content is as important as decreasing the magnesium content in the brine. 177PDF Image | SEPARATION OF LITHIUM FROM BRINES
