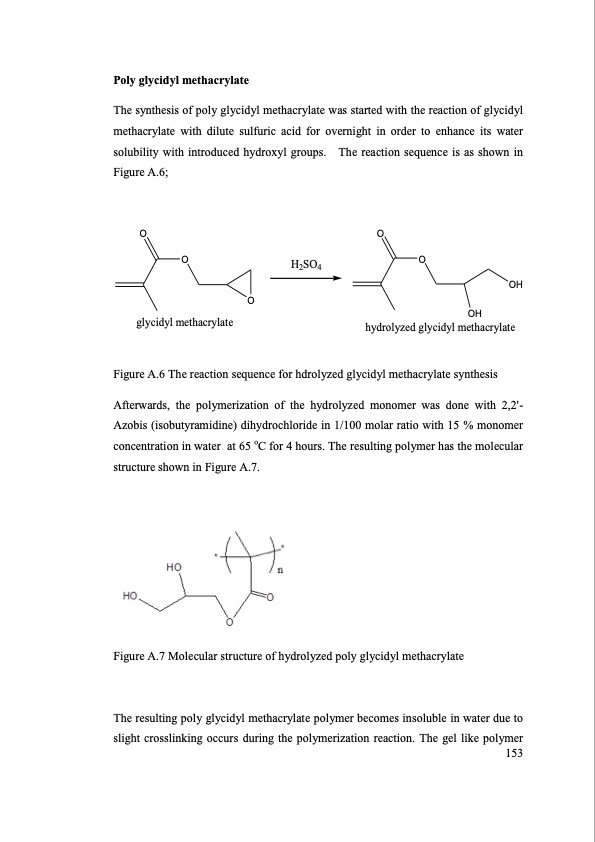

Poly glycidyl methacrylate The synthesis of poly glycidyl methacrylate was started with the reaction of glycidyl methacrylate with dilute sulfuric acid for overnight in order to enhance its water solubility with introduced hydroxyl groups. The reaction sequence is as shown in Figure A.6; OO O H2SO4 O glycidyl methacrylate hydrolyzed glycidyl methacrylate O OH OH Figure A.6 The reaction sequence for hdrolyzed glycidyl methacrylate synthesis Afterwards, the polymerization of the hydrolyzed monomer was done with 2,2'- Azobis (isobutyramidine) dihydrochloride in 1/100 molar ratio with 15 % monomer concentration in water at 65 oC for 4 hours. The resulting polymer has the molecular structure shown in Figure A.7. Figure A.7 Molecular structure of hydrolyzed poly glycidyl methacrylate The resulting poly glycidyl methacrylate polymer becomes insoluble in water due to slight crosslinking occurs during the polymerization reaction. The gel like polymer 153PDF Image | SEPARATION OF LITHIUM FROM BRINES
