Text from PDF Page: 176

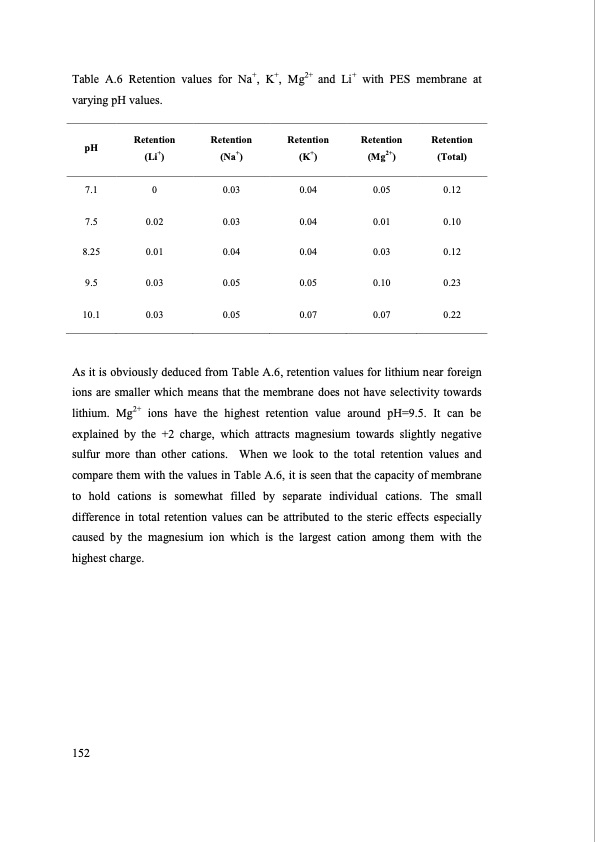

Table A.6 Retention values for Na+, K+, Mg2+ and Li+ with PES membrane at varying pH values. pH 7.1 0 7.5 0.02 8.25 0.01 9.5 0.03 10.1 0.03 0.03 0.04 0.03 0.04 0.04 0.04 0.05 0.05 0.05 0.07 Retention Retention Retention Retention (Mg2+) (Total) 0.05 0.12 0.01 0.10 0.03 0.12 0.10 0.23 0.07 0.22 Retention (Li+) (Na+) (K+) As it is obviously deduced from Table A.6, retention values for lithium near foreign ions are smaller which means that the membrane does not have selectivity towards lithium. Mg2+ ions have the highest retention value around pH=9.5. It can be explained by the +2 charge, which attracts magnesium towards slightly negative sulfur more than other cations. When we look to the total retention values and compare them with the values in Table A.6, it is seen that the capacity of membrane to hold cations is somewhat filled by separate individual cations. The small difference in total retention values can be attributed to the steric effects especially caused by the magnesium ion which is the largest cation among them with the highest charge. 152PDF Image | SEPARATION OF LITHIUM FROM BRINES
