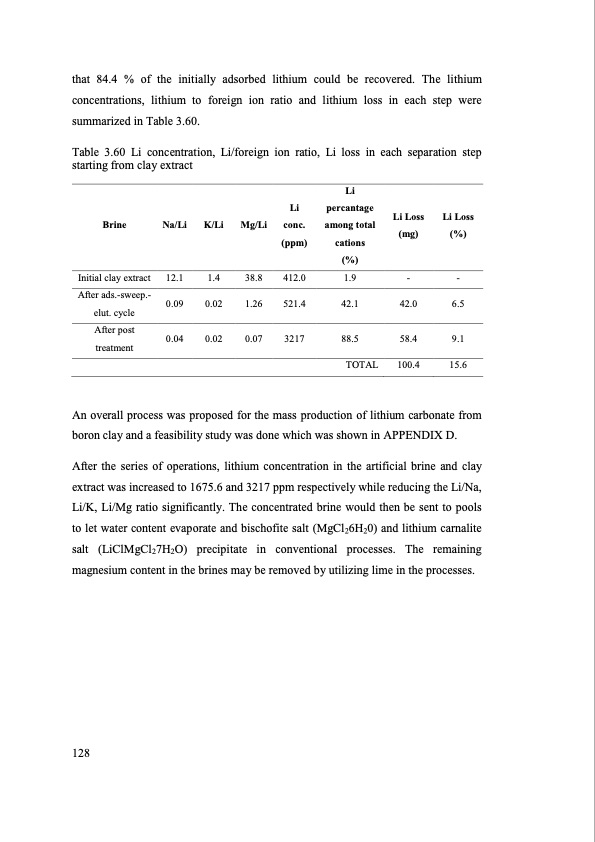

that 84.4 % of the initially adsorbed lithium could be recovered. The lithium concentrations, lithium to foreign ion ratio and lithium loss in each step were summarized in Table 3.60. Table 3.60 Li concentration, Li/foreign ion ratio, Li loss in each separation step starting from clay extract Brine Initial clay extract After ads.-sweep.- elut. cycle After post treatment Na/Li K/Li Mg/Li 12.1 1.4 38.8 0.09 0.02 1.26 0.04 0.02 0.07 Li conc. (ppm) 412.0 521.4 3217 Li percantage among total cations (%) 1.9 42.1 88.5 TOTAL Li Loss (mg) - 42.0 58.4 100.4 Li Loss (%) - 6.5 9.1 15.6 An overall process was proposed for the mass production of lithium carbonate from boron clay and a feasibility study was done which was shown in APPENDIX D. After the series of operations, lithium concentration in the artificial brine and clay extract was increased to 1675.6 and 3217 ppm respectively while reducing the Li/Na, Li/K, Li/Mg ratio significantly. The concentrated brine would then be sent to pools to let water content evaporate and bischofite salt (MgCl26H20) and lithium carnalite salt (LiClMgCl27H2O) precipitate in conventional processes. The remaining magnesium content in the brines may be removed by utilizing lime in the processes. 128PDF Image | SEPARATION OF LITHIUM FROM BRINES
