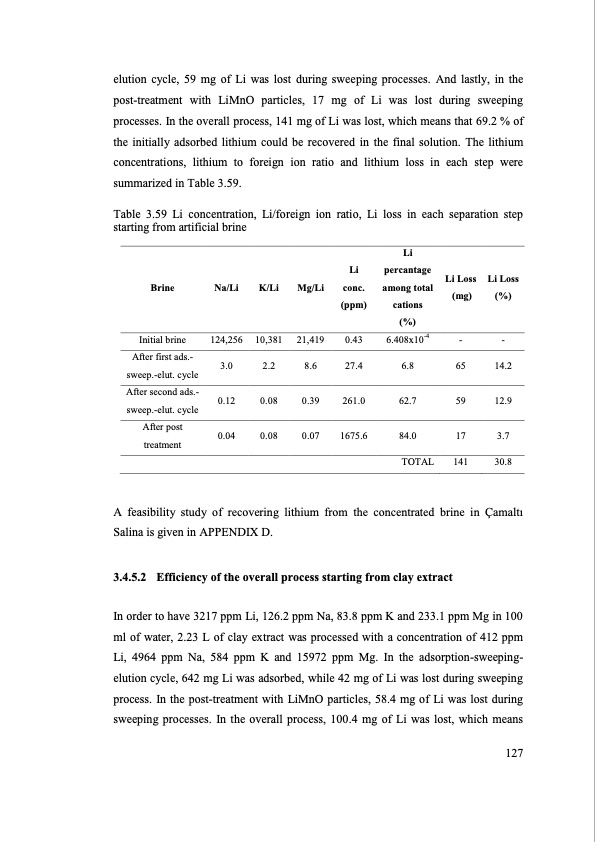

Text from PDF Page: 151
elution cycle, 59 mg of Li was lost during sweeping processes. And lastly, in the post-treatment with LiMnO particles, 17 mg of Li was lost during sweeping processes. In the overall process, 141 mg of Li was lost, which means that 69.2 % of the initially adsorbed lithium could be recovered in the final solution. The lithium concentrations, lithium to foreign ion ratio and lithium loss in each step were summarized in Table 3.59. Table 3.59 Li concentration, Li/foreign ion ratio, Li loss in each separation step starting from artificial brine Brine Initial brine After first ads.- sweep.-elut. cycle After second ads.- sweep.-elut. cycle After post treatment Na/Li K/Li Mg/Li 124,256 10,381 21,419 3.0 2.2 8.6 0.12 0.08 0.39 0.04 0.08 0.07 Li conc. (ppm) 0.43 27.4 261.0 1675.6 Li percantage among total cations (%) 6.408x10-4 6.8 62.7 84.0 TOTAL Li Loss (mg) - 65 59 17 141 Li Loss (%) - 14.2 12.9 3.7 30.8 A feasibility study of recovering lithium from the concentrated brine in Çamaltı Salina is given in APPENDIX D. 3.4.5.2 Efficiency of the overall process starting from clay extract In order to have 3217 ppm Li, 126.2 ppm Na, 83.8 ppm K and 233.1 ppm Mg in 100 ml of water, 2.23 L of clay extract was processed with a concentration of 412 ppm Li, 4964 ppm Na, 584 ppm K and 15972 ppm Mg. In the adsorption-sweeping- elution cycle, 642 mg Li was adsorbed, while 42 mg of Li was lost during sweeping process. In the post-treatment with LiMnO particles, 58.4 mg of Li was lost during sweeping processes. In the overall process, 100.4 mg of Li was lost, which means 127PDF Image | SEPARATION OF LITHIUM FROM BRINES
