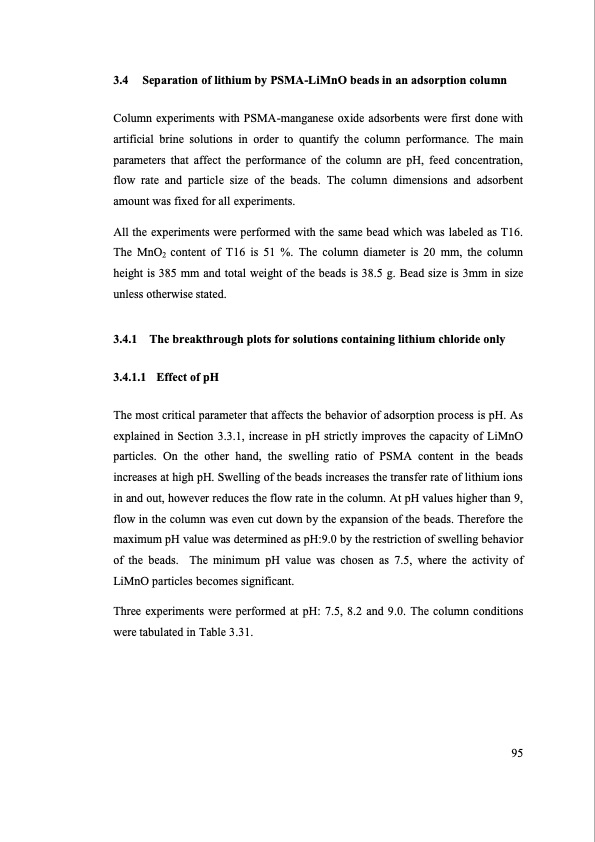

3.4 Separation of lithium by PSMA-LiMnO beads in an adsorption column Column experiments with PSMA-manganese oxide adsorbents were first done with artificial brine solutions in order to quantify the column performance. The main parameters that affect the performance of the column are pH, feed concentration, flow rate and particle size of the beads. The column dimensions and adsorbent amount was fixed for all experiments. All the experiments were performed with the same bead which was labeled as T16. The MnO2 content of T16 is 51 %. The column diameter is 20 mm, the column height is 385 mm and total weight of the beads is 38.5 g. Bead size is 3mm in size unless otherwise stated. 3.4.1 The breakthrough plots for solutions containing lithium chloride only 3.4.1.1 Effect of pH The most critical parameter that affects the behavior of adsorption process is pH. As explained in Section 3.3.1, increase in pH strictly improves the capacity of LiMnO particles. On the other hand, the swelling ratio of PSMA content in the beads increases at high pH. Swelling of the beads increases the transfer rate of lithium ions in and out, however reduces the flow rate in the column. At pH values higher than 9, flow in the column was even cut down by the expansion of the beads. Therefore the maximum pH value was determined as pH:9.0 by the restriction of swelling behavior of the beads. The minimum pH value was chosen as 7.5, where the activity of LiMnO particles becomes significant. Three experiments were performed at pH: 7.5, 8.2 and 9.0. The column conditions were tabulated in Table 3.31. 95PDF Image | SEPARATION OF LITHIUM FROM BRINES
