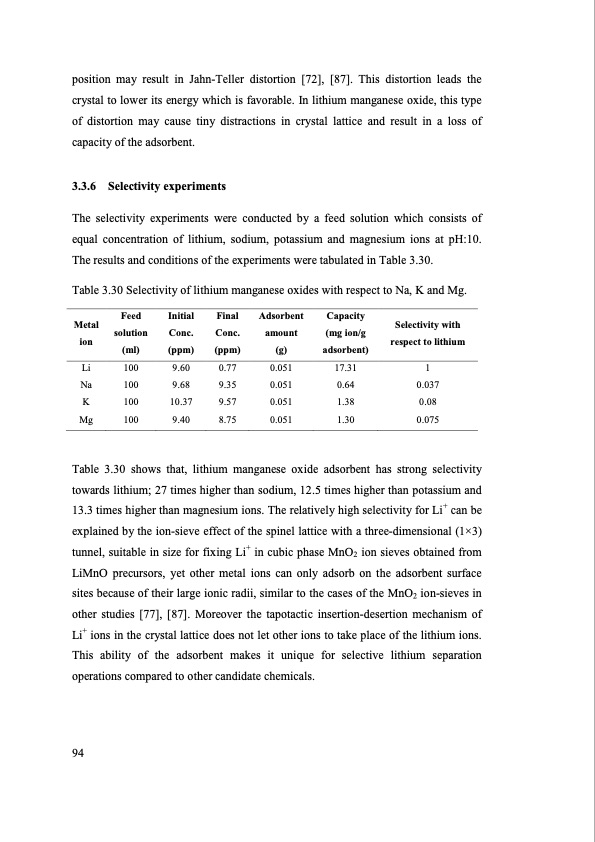

Text from PDF Page: 118
position may result in Jahn-Teller distortion [72], [87]. This distortion leads the crystal to lower its energy which is favorable. In lithium manganese oxide, this type of distortion may cause tiny distractions in crystal lattice and result in a loss of capacity of the adsorbent. 3.3.6 Selectivity experiments The selectivity experiments were conducted by a feed solution which consists of equal concentration of lithium, sodium, potassium and magnesium ions at pH:10. The results and conditions of the experiments were tabulated in Table 3.30. Table 3.30 Selectivity of lithium manganese oxides with respect to Na, K and Mg. Metal Feed ion solution (ml) Li 100 Na 100 K 100 Mg 100 Initial Final Conc. Conc. (ppm) (ppm) 9.60 0.77 9.68 9.35 10.37 9.57 9.40 8.75 Adsorbent amount (g) 0.051 0.051 0.051 0.051 Capacity (mg ion/g adsorbent) 17.31 0.64 1.38 1.30 Selectivity with respect to lithium 1 0.037 0.08 0.075 Table 3.30 shows that, lithium manganese oxide adsorbent has strong selectivity towards lithium; 27 times higher than sodium, 12.5 times higher than potassium and 13.3 times higher than magnesium ions. The relatively high selectivity for Li+ can be explained by the ion-sieve effect of the spinel lattice with a three-dimensional (1×3) tunnel, suitable in size for fixing Li+ in cubic phase MnO2 ion sieves obtained from LiMnO precursors, yet other metal ions can only adsorb on the adsorbent surface sites because of their large ionic radii, similar to the cases of the MnO2 ion-sieves in other studies [77], [87]. Moreover the tapotactic insertion-desertion mechanism of Li+ ions in the crystal lattice does not let other ions to take place of the lithium ions. This ability of the adsorbent makes it unique for selective lithium separation operations compared to other candidate chemicals. 94PDF Image | SEPARATION OF LITHIUM FROM BRINES
