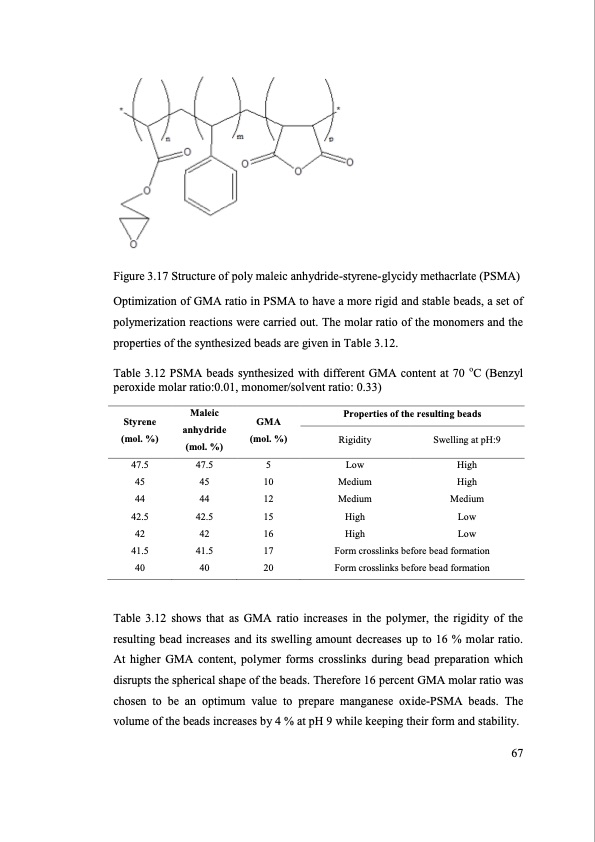

Figure 3.17 Structure of poly maleic anhydride-styrene-glycidy methacrlate (PSMA) Optimization of GMA ratio in PSMA to have a more rigid and stable beads, a set of polymerization reactions were carried out. The molar ratio of the monomers and the properties of the synthesized beads are given in Table 3.12. Table 3.12 PSMA beads synthesized with different GMA content at 70 oC (Benzyl peroxide molar ratio:0.01, monomer/solvent ratio: 0.33) Styrene (mol. %) 47.5 45 44 42.5 42 41.5 40 Maleic GMA anhydride (mol. %) (mol. %) 47.5 5 45 10 44 12 42.5 15 42 16 41.5 17 40 20 Properties of the resulting beads Rigidity Low Medium Medium High High Swelling at pH:9 High High Medium Low Low Form crosslinks before bead formation Form crosslinks before bead formation Table 3.12 shows that as GMA ratio increases in the polymer, the rigidity of the resulting bead increases and its swelling amount decreases up to 16 % molar ratio. At higher GMA content, polymer forms crosslinks during bead preparation which disrupts the spherical shape of the beads. Therefore 16 percent GMA molar ratio was chosen to be an optimum value to prepare manganese oxide-PSMA beads. The volume of the beads increases by 4 % at pH 9 while keeping their form and stability. 67PDF Image | SEPARATION OF LITHIUM FROM BRINES
