PDF Publication Title:

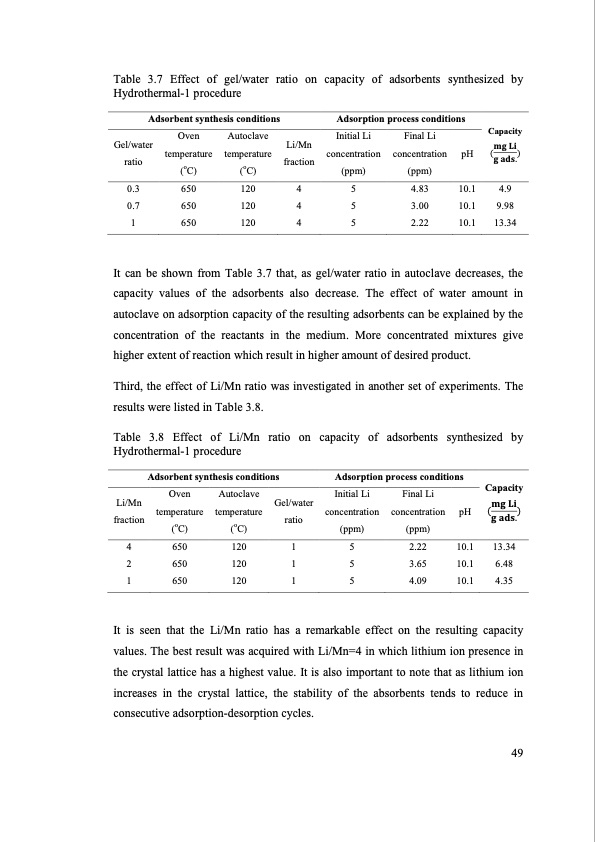

Text from PDF Page: 073
Table 3.7 Effect of gel/water ratio on capacity of adsorbents synthesized by Hydrothermal-1 procedure Adsorbent synthesis conditions Adsorption process conditions Oven Autoclave Initial Li Final Li Capacity Gel/water temperature temperature Li/Mn concentration concentration pH (𝐦𝐠𝐋𝐢) ratio o o fraction 𝐠𝐚𝐝𝐬. 10.1 4.9 10.1 9.98 10.1 13.34 ( C) 0.3 650 0.7 650 1 650 ( C) 120 120 120 4 4 4 (ppm) (ppm) 5 4.83 5 3.00 5 2.22 It can be shown from Table 3.7 that, as gel/water ratio in autoclave decreases, the capacity values of the adsorbents also decrease. The effect of water amount in autoclave on adsorption capacity of the resulting adsorbents can be explained by the concentration of the reactants in the medium. More concentrated mixtures give higher extent of reaction which result in higher amount of desired product. Third, the effect of Li/Mn ratio was investigated in another set of experiments. The results were listed in Table 3.8. Table 3.8 Effect of Li/Mn ratio on capacity of adsorbents synthesized by Hydrothermal-1 procedure Adsorbent synthesis conditions Adsorption process conditions Oven Autoclave Initial Li Final Li Capacity Li/Mn temperature temperature Gel/water concentration concentration pH (𝐦𝐠𝐋𝐢) fraction (oC) (oC) ratio (ppm) (ppm) 𝐠𝐚𝐝𝐬. 4 650 120 1 5 2.22 10.1 13.34 2 650 120 1 5 3.65 10.1 6.48 1 650 120 1 5 4.09 10.1 4.35 It is seen that the Li/Mn ratio has a remarkable effect on the resulting capacity values. The best result was acquired with Li/Mn=4 in which lithium ion presence in the crystal lattice has a highest value. It is also important to note that as lithium ion increases in the crystal lattice, the stability of the absorbents tends to reduce in consecutive adsorption-desorption cycles. 49PDF Image | SEPARATION OF LITHIUM FROM BRINES
