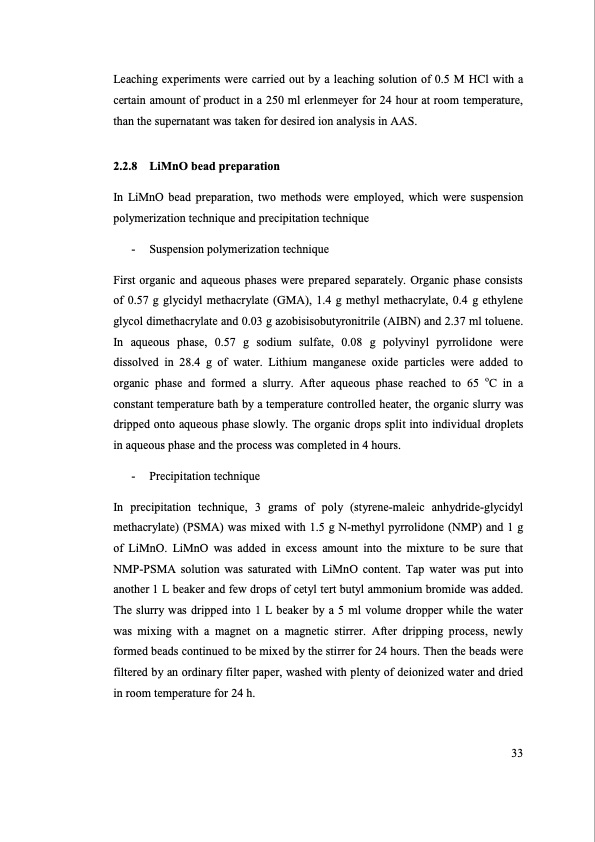

Leaching experiments were carried out by a leaching solution of 0.5 M HCl with a certain amount of product in a 250 ml erlenmeyer for 24 hour at room temperature, than the supernatant was taken for desired ion analysis in AAS. 2.2.8 LiMnO bead preparation In LiMnO bead preparation, two methods were employed, which were suspension polymerization technique and precipitation technique - Suspension polymerization technique First organic and aqueous phases were prepared separately. Organic phase consists of 0.57 g glycidyl methacrylate (GMA), 1.4 g methyl methacrylate, 0.4 g ethylene glycol dimethacrylate and 0.03 g azobisisobutyronitrile (AIBN) and 2.37 ml toluene. In aqueous phase, 0.57 g sodium sulfate, 0.08 g polyvinyl pyrrolidone were dissolved in 28.4 g of water. Lithium manganese oxide particles were added to organic phase and formed a slurry. After aqueous phase reached to 65 oC in a constant temperature bath by a temperature controlled heater, the organic slurry was dripped onto aqueous phase slowly. The organic drops split into individual droplets in aqueous phase and the process was completed in 4 hours. - Precipitation technique In precipitation technique, 3 grams of poly (styrene-maleic anhydride-glycidyl methacrylate) (PSMA) was mixed with 1.5 g N-methyl pyrrolidone (NMP) and 1 g of LiMnO. LiMnO was added in excess amount into the mixture to be sure that NMP-PSMA solution was saturated with LiMnO content. Tap water was put into another 1 L beaker and few drops of cetyl tert butyl ammonium bromide was added. The slurry was dripped into 1 L beaker by a 5 ml volume dropper while the water was mixing with a magnet on a magnetic stirrer. After dripping process, newly formed beads continued to be mixed by the stirrer for 24 hours. Then the beads were filtered by an ordinary filter paper, washed with plenty of deionized water and dried in room temperature for 24 h. 33PDF Image | SEPARATION OF LITHIUM FROM BRINES
