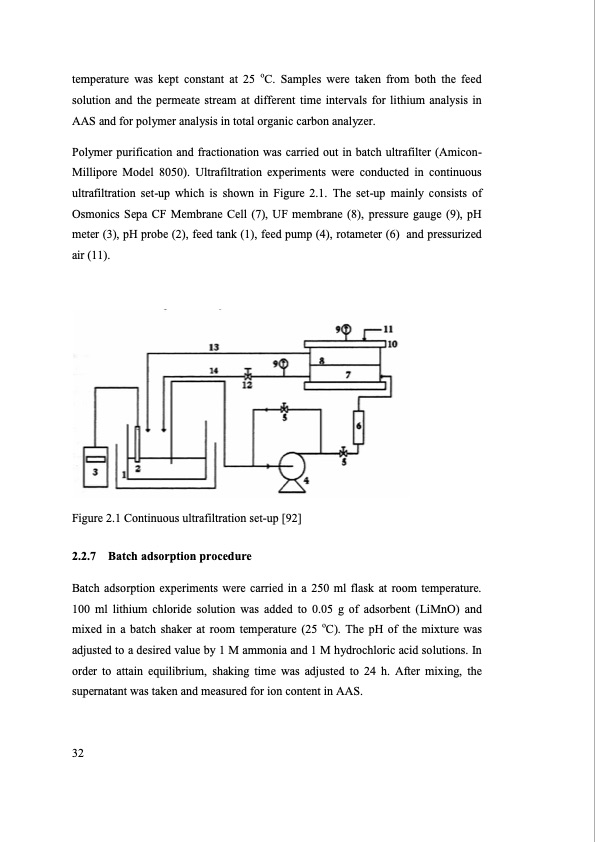

temperature was kept constant at 25 oC. Samples were taken from both the feed solution and the permeate stream at different time intervals for lithium analysis in AAS and for polymer analysis in total organic carbon analyzer. Polymer purification and fractionation was carried out in batch ultrafilter (Amicon- Millipore Model 8050). Ultrafiltration experiments were conducted in continuous ultrafiltration set-up which is shown in Figure 2.1. The set-up mainly consists of Osmonics Sepa CF Membrane Cell (7), UF membrane (8), pressure gauge (9), pH meter (3), pH probe (2), feed tank (1), feed pump (4), rotameter (6) and pressurized air (11). Figure 2.1 Continuous ultrafiltration set-up [92] 2.2.7 Batch adsorption procedure Batch adsorption experiments were carried in a 250 ml flask at room temperature. 100 ml lithium chloride solution was added to 0.05 g of adsorbent (LiMnO) and mixed in a batch shaker at room temperature (25 oC). The pH of the mixture was adjusted to a desired value by 1 M ammonia and 1 M hydrochloric acid solutions. In order to attain equilibrium, shaking time was adjusted to 24 h. After mixing, the supernatant was taken and measured for ion content in AAS. 32PDF Image | SEPARATION OF LITHIUM FROM BRINES
