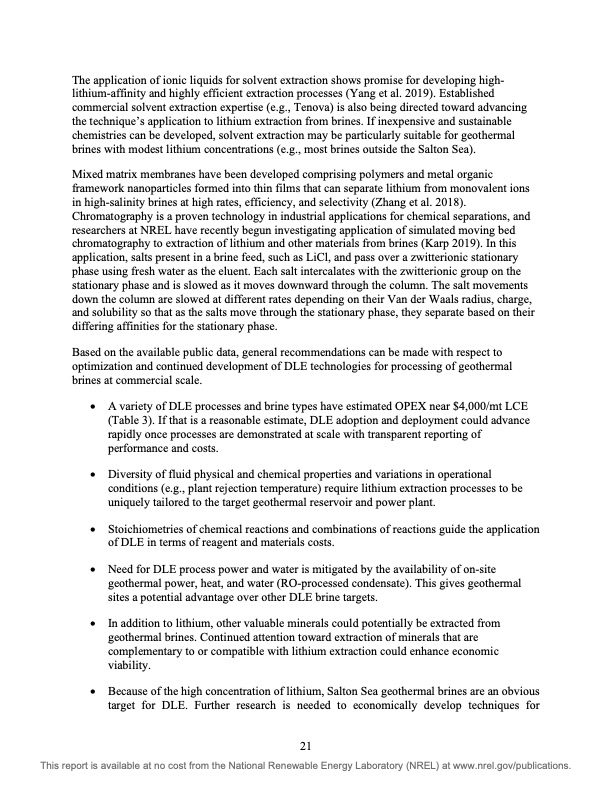

Text from PDF Page: 030
The application of ionic liquids for solvent extraction shows promise for developing high- lithium-affinity and highly efficient extraction processes (Yang et al. 2019). Established commercial solvent extraction expertise (e.g., Tenova) is also being directed toward advancing the technique’s application to lithium extraction from brines. If inexpensive and sustainable chemistries can be developed, solvent extraction may be particularly suitable for geothermal brines with modest lithium concentrations (e.g., most brines outside the Salton Sea). Mixed matrix membranes have been developed comprising polymers and metal organic framework nanoparticles formed into thin films that can separate lithium from monovalent ions in high-salinity brines at high rates, efficiency, and selectivity (Zhang et al. 2018). Chromatography is a proven technology in industrial applications for chemical separations, and researchers at NREL have recently begun investigating application of simulated moving bed chromatography to extraction of lithium and other materials from brines (Karp 2019). In this application, salts present in a brine feed, such as LiCl, and pass over a zwitterionic stationary phase using fresh water as the eluent. Each salt intercalates with the zwitterionic group on the stationary phase and is slowed as it moves downward through the column. The salt movements down the column are slowed at different rates depending on their Van der Waals radius, charge, and solubility so that as the salts move through the stationary phase, they separate based on their differing affinities for the stationary phase. Based on the available public data, general recommendations can be made with respect to optimization and continued development of DLE technologies for processing of geothermal brines at commercial scale. • A variety of DLE processes and brine types have estimated OPEX near $4,000/mt LCE (Table 3). If that is a reasonable estimate, DLE adoption and deployment could advance rapidly once processes are demonstrated at scale with transparent reporting of performance and costs. • Diversity of fluid physical and chemical properties and variations in operational conditions (e.g., plant rejection temperature) require lithium extraction processes to be uniquely tailored to the target geothermal reservoir and power plant. • Stoichiometries of chemical reactions and combinations of reactions guide the application of DLE in terms of reagent and materials costs. • Need for DLE process power and water is mitigated by the availability of on-site geothermal power, heat, and water (RO-processed condensate). This gives geothermal sites a potential advantage over other DLE brine targets. • In addition to lithium, other valuable minerals could potentially be extracted from geothermal brines. Continued attention toward extraction of minerals that are complementary to or compatible with lithium extraction could enhance economic viability. • Because of the high concentration of lithium, Salton Sea geothermal brines are an obvious target for DLE. Further research is needed to economically develop techniques for 21 This report is available at no cost from the National Renewable Energy Laboratory (NREL) at www.nrel.gov/publications.PDF Image | Lithium Extraction from Geothermal Brines
