Text from PDF Page: 017

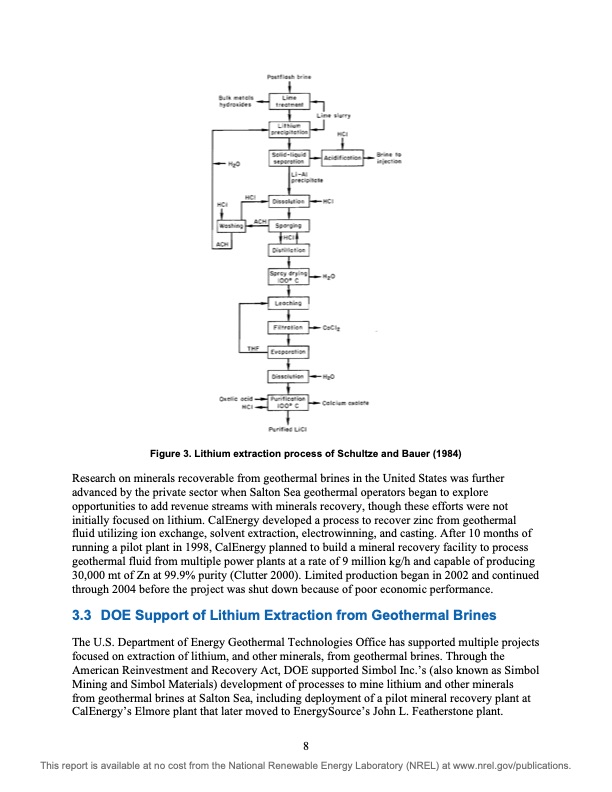

Figure 3. Lithium extraction process of Schultze and Bauer (1984) Research on minerals recoverable from geothermal brines in the United States was further advanced by the private sector when Salton Sea geothermal operators began to explore opportunities to add revenue streams with minerals recovery, though these efforts were not initially focused on lithium. CalEnergy developed a process to recover zinc from geothermal fluid utilizing ion exchange, solvent extraction, electrowinning, and casting. After 10 months of running a pilot plant in 1998, CalEnergy planned to build a mineral recovery facility to process geothermal fluid from multiple power plants at a rate of 9 million kg/h and capable of producing 30,000 mt of Zn at 99.9% purity (Clutter 2000). Limited production began in 2002 and continued through 2004 before the project was shut down because of poor economic performance. 3.3 DOESupportofLithiumExtractionfromGeothermalBrines The U.S. Department of Energy Geothermal Technologies Office has supported multiple projects focused on extraction of lithium, and other minerals, from geothermal brines. Through the American Reinvestment and Recovery Act, DOE supported Simbol Inc.’s (also known as Simbol Mining and Simbol Materials) development of processes to mine lithium and other minerals from geothermal brines at Salton Sea, including deployment of a pilot mineral recovery plant at CalEnergy’s Elmore plant that later moved to EnergySource’s John L. Featherstone plant. 8 This report is available at no cost from the National Renewable Energy Laboratory (NREL) at www.nrel.gov/publications.PDF Image | Lithium Extraction from Geothermal Brines
