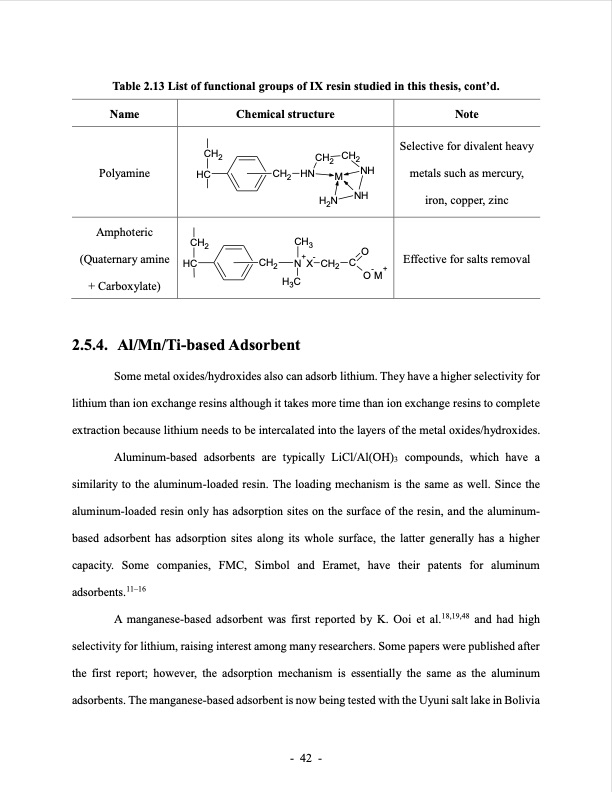

Table 2.13 List of functional groups of IX resin studied in this thesis, cont’d. Name Polyamine Amphoteric (Quaternary amine + Carboxylate) Chemical structure Note Selective for divalent heavy metals such as mercury, iron, copper, zinc Effective for salts removal CH2 CH2 CH2 HC CH2 HN M H2N NH NH CH2 CH3 O HC CH2 N+X- CH2 C - + H3C OM 2.5.4. Al/Mn/Ti-basedAdsorbent Some metal oxides/hydroxides also can adsorb lithium. They have a higher selectivity for lithium than ion exchange resins although it takes more time than ion exchange resins to complete extraction because lithium needs to be intercalated into the layers of the metal oxides/hydroxides. Aluminum-based adsorbents are typically LiCl/Al(OH)3 compounds, which have a similarity to the aluminum-loaded resin. The loading mechanism is the same as well. Since the aluminum-loaded resin only has adsorption sites on the surface of the resin, and the aluminum- based adsorbent has adsorption sites along its whole surface, the latter generally has a higher capacity. Some companies, FMC, Simbol and Eramet, have their patents for aluminum adsorbents.11–16 A manganese-based adsorbent was first reported by K. Ooi et al.18,19,48 and had high selectivity for lithium, raising interest among many researchers. Some papers were published after the first report; however, the adsorption mechanism is essentially the same as the aluminum adsorbents. The manganese-based adsorbent is now being tested with the Uyuni salt lake in Bolivia - 42 -PDF Image | LITHIUM EXTRACTION FROM BRINE using ion resin
