Text from PDF Page: 361

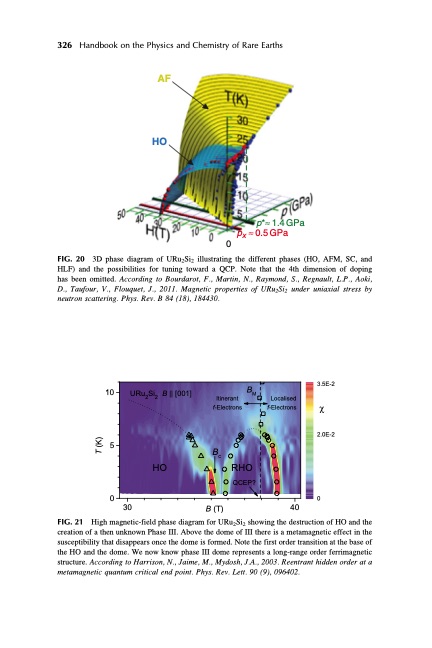

326 Handbook on the Physics and Chemistry of Rare Earths AF FIG. 20 HO 3D phase diagram of URu2Si2 illustrating the different phases (HO, AFM, SC, and HLF) and the possibilities for tuning toward a QCP. Note that the 4th dimension of doping has been omitted. According to Bourdarot, F., Martin, N., Raymond, S., Regnault, L.P., Aoki, D., Taufour, V., Flouquet, J., 2011. Magnetic properties of URu2Si2 under uniaxial stress by neutron scattering. Phys. Rev. B 84 (18), 184430. FIG. 21 10 URu2Si2 5 B || [001] BM Itinerant f-Electrons 3.5E-2 Localised f-Electrons c 2.0E-2 p*≈ 1.4 GPa px ≈0.5GPa 0 T (K) Bc QCEP? HO 00 30 B (T) 40 High magnetic-field phase diagram for URu2Si2 showing the destruction of HO and the creation of a then unknown Phase III. Above the dome of III there is a metamagnetic effect in the susceptibility that disappears once the dome is formed. Note the first order transition at the base of the HO and the dome. We now know phase III dome represents a long-range order ferrimagnetic structure. According to Harrison, N., Jaime, M., Mydosh, J.A., 2003. Reentrant hidden order at a metamagnetic quantum critical end point. Phys. Rev. Lett. 90 (9), 096402. RHO
