Text from PDF Page: 011

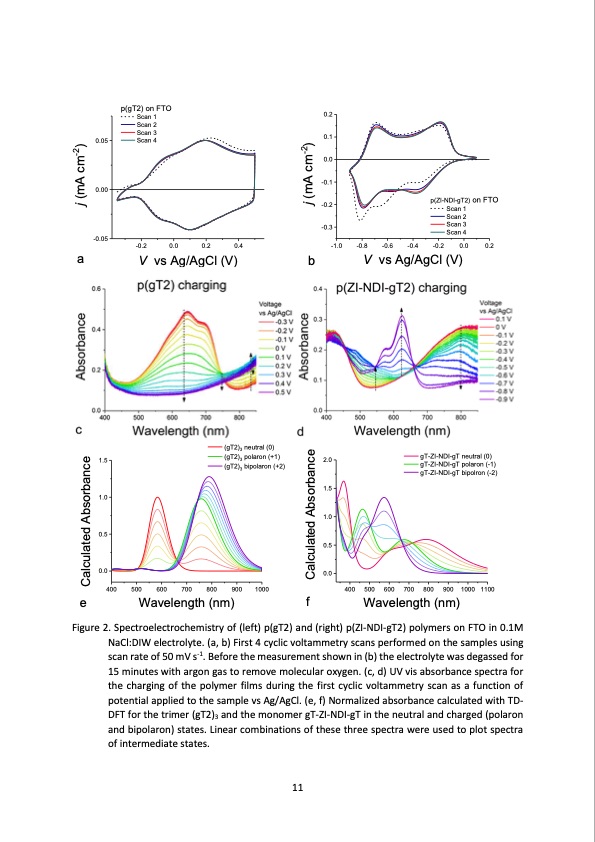

0.05 0.00 -0.05 a p(gT2) on FTO Scan 1 Scan 2 Scan 3 Scan 4 -0.2 0.0 0.2 0.4 V vs Ag/AgCl (V) b 0.2 0.1 0.0 -0.1 -0.2 -0.3 -1.0 -0.8 -0.6 p(ZI-NDI-gT2) on FTO Scan 1 Scan 2 Scan 3 Scan 4 -0.4 -0.2 0.0 0.2 e 400 500 600 700 800 900 1000 Wavelength (nm) f 1.5 1.0 0.5 0.0 (gT2)3 neutral (0) (gT2)3 polaron (+1) (gT2)3 bipolaron (+2) 2.0 1.5 1.0 0.5 0.0 gT-ZI-NDI-gT neutral (0) gT-ZI-NDI-gT polaron (-1) gT-ZI-NDI-gT bipolron (-2) 400 500 600 700 800 900 1000 1100 Wavelength (nm) Figure 2. Spectroelectrochemistry of (left) p(gT2) and (right) p(ZI-NDI-gT2) polymers on FTO in 0.1M NaCl:DIW electrolyte. (a, b) First 4 cyclic voltammetry scans performed on the samples using scan rate of 50 mV s-1. Before the measurement shown in (b) the electrolyte was degassed for 15 minutes with argon gas to remove molecular oxygen. (c, d) UV vis absorbance spectra for the charging of the polymer films during the first cyclic voltammetry scan as a function of potential applied to the sample vs Ag/AgCl. (e, f) Normalized absorbance calculated with TD- DFT for the trimer (gT2)3 and the monomer gT-ZI-NDI-gT in the neutral and charged (polaron and bipolaron) states. Linear combinations of these three spectra were used to plot spectra of intermediate states. 11 V vs Ag/AgCl (V) Calculated Absorbance j (mA cm-2) Calculated Absorbance j (mA cm-2)PDF Image | salt water battery with high stability
