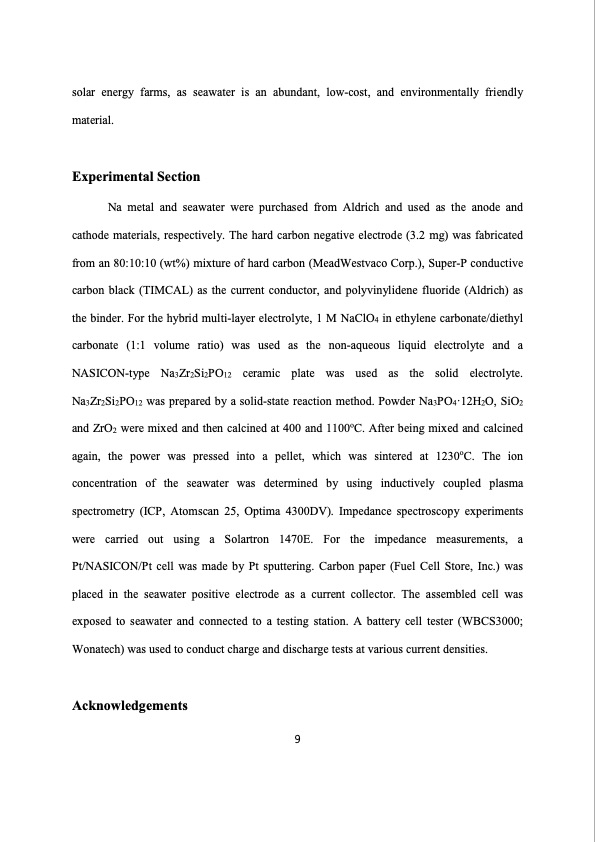

solar energy farms, as seawater is an abundant, low-cost, and environmentally friendly material. Experimental Section Na metal and seawater were purchased from Aldrich and used as the anode and cathode materials, respectively. The hard carbon negative electrode (3.2 mg) was fabricated from an 80:10:10 (wt%) mixture of hard carbon (MeadWestvaco Corp.), Super-P conductive carbon black (TIMCAL) as the current conductor, and polyvinylidene fluoride (Aldrich) as the binder. For the hybrid multi-layer electrolyte, 1 M NaClO4 in ethylene carbonate/diethyl carbonate (1:1 volume ratio) was used as the non-aqueous liquid electrolyte and a NASICON-type Na3Zr2Si2PO12 ceramic plate was used as the solid electrolyte. Na3Zr2Si2PO12 was prepared by a solid-state reaction method. Powder Na3PO4ยท12H2O, SiO2 and ZrO2 were mixed and then calcined at 400 and 1100oC. After being mixed and calcined again, the power was pressed into a pellet, which was sintered at 1230oC. The ion concentration of the seawater was determined by using inductively coupled plasma spectrometry (ICP, Atomscan 25, Optima 4300DV). Impedance spectroscopy experiments were carried out using a Solartron 1470E. For the impedance measurements, a Pt/NASICON/Pt cell was made by Pt sputtering. Carbon paper (Fuel Cell Store, Inc.) was placed in the seawater positive electrode as a current collector. The assembled cell was exposed to seawater and connected to a testing station. A battery cell tester (WBCS3000; Wonatech) was used to conduct charge and discharge tests at various current densities. Acknowledgements 9PDF Image | Rechargeable Seawater Battery
