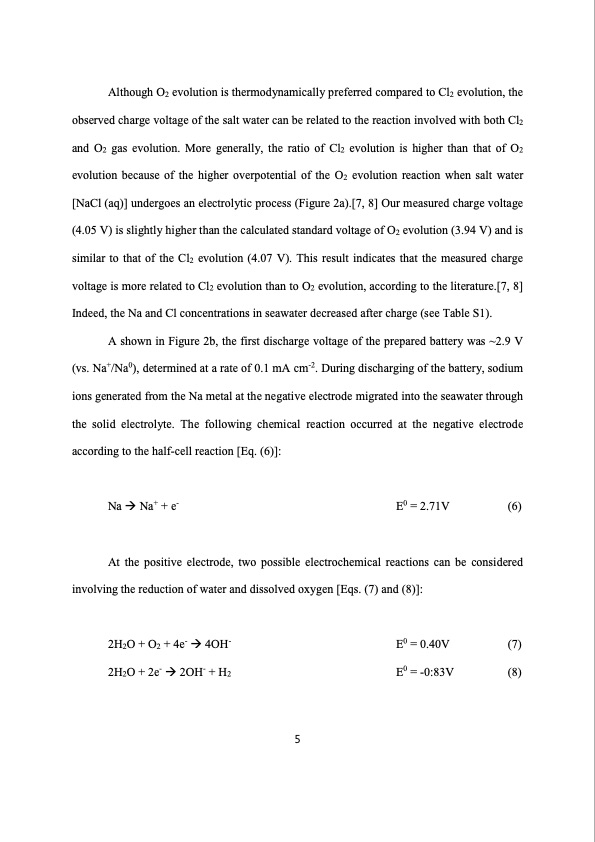

Text from PDF Page: 005
Although O2 evolution is thermodynamically preferred compared to Cl2 evolution, the observed charge voltage of the salt water can be related to the reaction involved with both Cl2 and O2 gas evolution. More generally, the ratio of Cl2 evolution is higher than that of O2 evolution because of the higher overpotential of the O2 evolution reaction when salt water [NaCl (aq)] undergoes an electrolytic process (Figure 2a).[7, 8] Our measured charge voltage (4.05 V) is slightly higher than the calculated standard voltage of O2 evolution (3.94 V) and is similar to that of the Cl2 evolution (4.07 V). This result indicates that the measured charge voltage is more related to Cl2 evolution than to O2 evolution, according to the literature.[7, 8] Indeed, the Na and Cl concentrations in seawater decreased after charge (see Table S1). A shown in Figure 2b, the first discharge voltage of the prepared battery was ~2.9 V (vs. Na+/Na0), determined at a rate of 0.1 mA cm-2. During discharging of the battery, sodium ions generated from the Na metal at the negative electrode migrated into the seawater through the solid electrolyte. The following chemical reaction occurred at the negative electrode according to the half-cell reaction [Eq. (6)]: NaNa+ + e- E0 = 2.71V (6) At the positive electrode, two possible electrochemical reactions can be considered involving the reduction of water and dissolved oxygen [Eqs. (7) and (8)]: 2H2O + O2 + 4e-4OH- E0 = 0.40V (7) 2H2O + 2e-2OH- + H2 E0 = -0:83V (8) 5PDF Image | Rechargeable Seawater Battery
