PDF Publication Title:
Text from PDF Page: 018

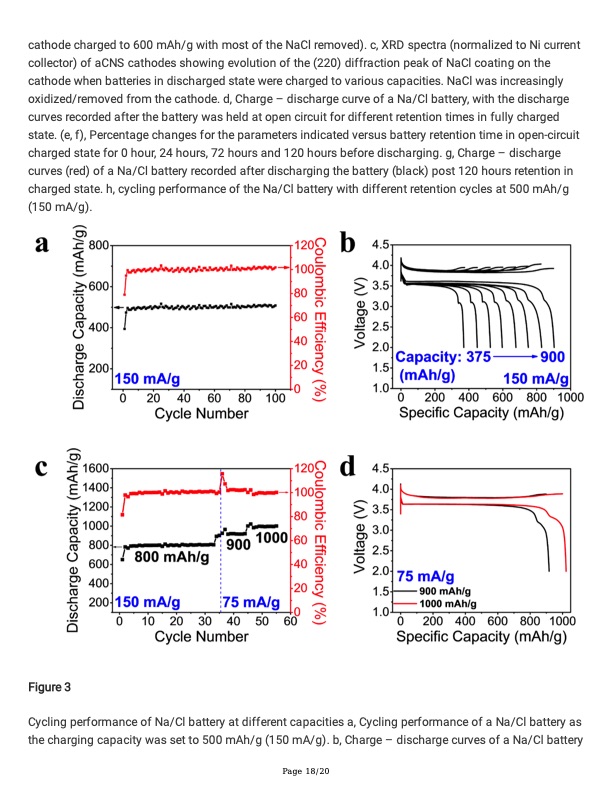

cathode charged to 600 mAh/g with most of the NaCl removed). c, XRD spectra (normalized to Ni current collector) of aCNS cathodes showing evolution of the (220) diffraction peak of NaCl coating on the cathode when batteries in discharged state were charged to various capacities. NaCl was increasingly oxidized/removed from the cathode. d, Charge – discharge curve of a Na/Cl battery, with the discharge curves recorded after the battery was held at open circuit for different retention times in fully charged state. (e, f), Percentage changes for the parameters indicated versus battery retention time in open-circuit charged state for 0 hour, 24 hours, 72 hours and 120 hours before discharging. g, Charge – discharge curves (red) of a Na/Cl battery recorded after discharging the battery (black) post 120 hours retention in charged state. h, cycling performance of the Na/Cl battery with different retention cycles at 500 mAh/g (150 mA/g). Figure 3 Cycling performance of Na/Cl battery at different capacities a, Cycling performance of a Na/Cl battery as the charging capacity was set to 500 mAh/g (150 mA/g). b, Charge – discharge curves of a Na/Cl battery Page 18/20PDF Image | Rechargeable NaCl Battery Hongjie
PDF Search Title:
Rechargeable NaCl Battery HongjieOriginal File Name Searched:
A_Rechargeable_NaCl_Battery.pdfDIY PDF Search: Google It | Yahoo | Bing
