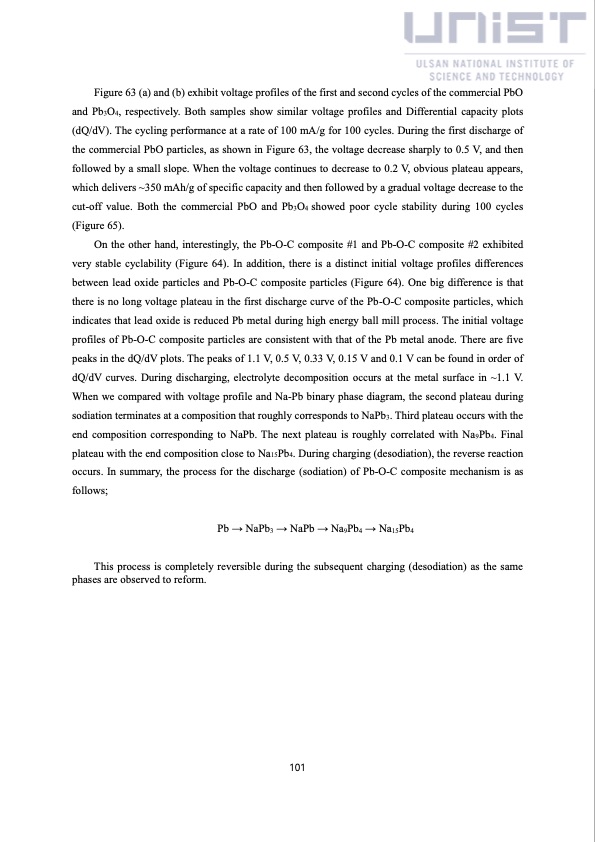

Text from PDF Page: 106
Figure 63 (a) and (b) exhibit voltage profiles of the first and second cycles of the commercial PbO and Pb3O4, respectively. Both samples show similar voltage profiles and Differential capacity plots (dQ/dV). The cycling performance at a rate of 100 mA/g for 100 cycles. During the first discharge of the commercial PbO particles, as shown in Figure 63, the voltage decrease sharply to 0.5 V, and then followed by a small slope. When the voltage continues to decrease to 0.2 V, obvious plateau appears, which delivers ~350 mAh/g of specific capacity and then followed by a gradual voltage decrease to the cut-off value. Both the commercial PbO and Pb3O4 showed poor cycle stability during 100 cycles (Figure 65). On the other hand, interestingly, the Pb-O-C composite #1 and Pb-O-C composite #2 exhibited very stable cyclability (Figure 64). In addition, there is a distinct initial voltage profiles differences between lead oxide particles and Pb-O-C composite particles (Figure 64). One big difference is that there is no long voltage plateau in the first discharge curve of the Pb-O-C composite particles, which indicates that lead oxide is reduced Pb metal during high energy ball mill process. The initial voltage profiles of Pb-O-C composite particles are consistent with that of the Pb metal anode. There are five peaks in the dQ/dV plots. The peaks of 1.1 V, 0.5 V, 0.33 V, 0.15 V and 0.1 V can be found in order of dQ/dV curves. During discharging, electrolyte decomposition occurs at the metal surface in ~1.1 V. When we compared with voltage profile and Na-Pb binary phase diagram, the second plateau during sodiation terminates at a composition that roughly corresponds to NaPb3. Third plateau occurs with the end composition corresponding to NaPb. The next plateau is roughly correlated with Na9Pb4. Final plateau with the end composition close to Na15Pb4. During charging (desodiation), the reverse reaction occurs. In summary, the process for the discharge (sodiation) of Pb-O-C composite mechanism is as follows; Pb → NaPb3 → NaPb → Na9Pb4 → Na15Pb4 This process is completely reversible during the subsequent charging (desodiation) as the same phases are observed to reform. 101PDF Image | China solar seawater battery
