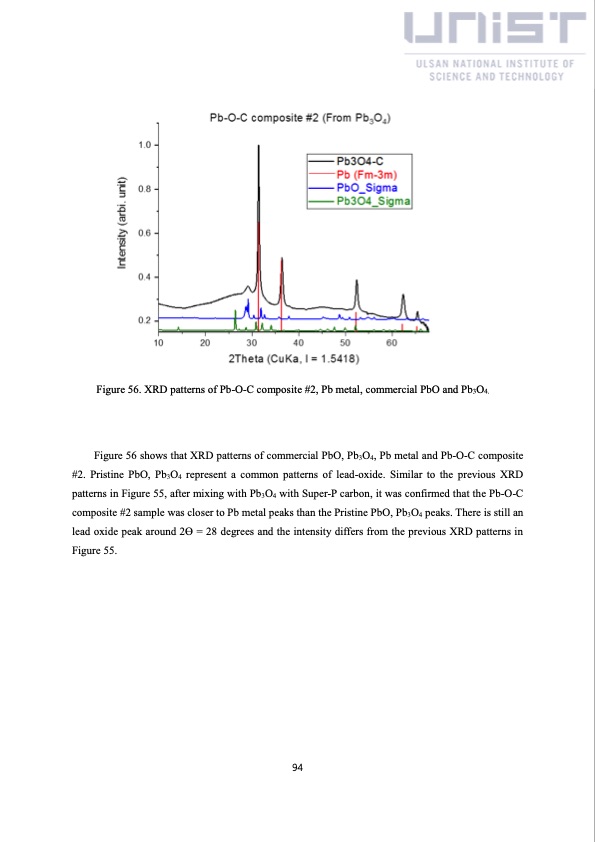

Figure 56. XRD patterns of Pb-O-C composite #2, Pb metal, commercial PbO and Pb3O4. Figure 56 shows that XRD patterns of commercial PbO, Pb3O4, Pb metal and Pb-O-C composite #2. Pristine PbO, Pb3O4 represent a common patterns of lead-oxide. Similar to the previous XRD patterns in Figure 55, after mixing with Pb3O4 with Super-P carbon, it was confirmed that the Pb-O-C composite #2 sample was closer to Pb metal peaks than the Pristine PbO, Pb3O4 peaks. There is still an lead oxide peak around 2Ɵ = 28 degrees and the intensity differs from the previous XRD patterns in Figure 55. 94PDF Image | China solar seawater battery
