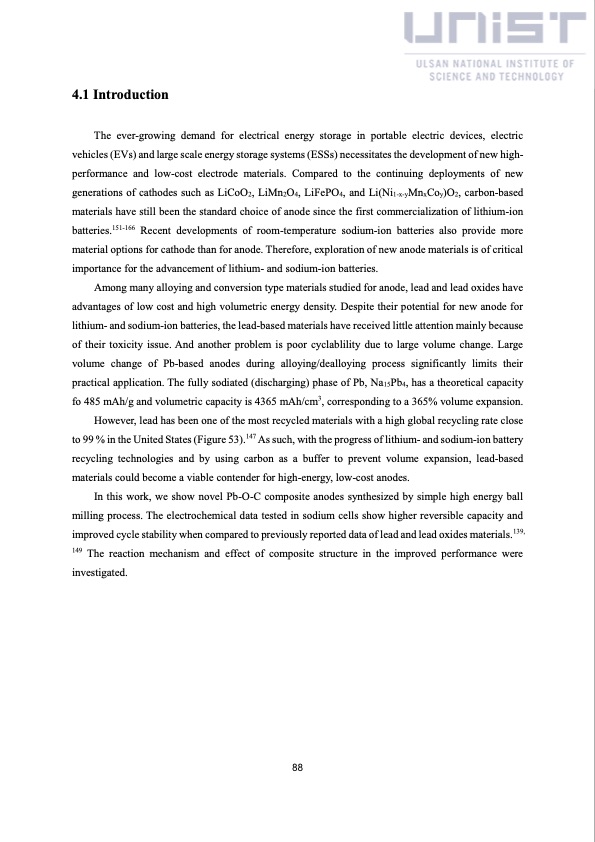

4.1 Introduction The ever-growing demand for electrical energy storage in portable electric devices, electric vehicles (EVs) and large scale energy storage systems (ESSs) necessitates the development of new high- performance and low-cost electrode materials. Compared to the continuing deployments of new generations of cathodes such as LiCoO2, LiMn2O4, LiFePO4, and Li(Ni1-x-yMnxCoy)O2, carbon-based materials have still been the standard choice of anode since the first commercialization of lithium-ion batteries.151-166 Recent developments of room-temperature sodium-ion batteries also provide more material options for cathode than for anode. Therefore, exploration of new anode materials is of critical importance for the advancement of lithium- and sodium-ion batteries. Among many alloying and conversion type materials studied for anode, lead and lead oxides have advantages of low cost and high volumetric energy density. Despite their potential for new anode for lithium- and sodium-ion batteries, the lead-based materials have received little attention mainly because of their toxicity issue. And another problem is poor cyclablility due to large volume change. Large volume change of Pb-based anodes during alloying/dealloying process significantly limits their practical application. The fully sodiated (discharging) phase of Pb, Na15Pb4, has a theoretical capacity fo 485 mAh/g and volumetric capacity is 4365 mAh/cm3, corresponding to a 365% volume expansion. However, lead has been one of the most recycled materials with a high global recycling rate close to 99 % in the United States (Figure 53).147 As such, with the progress of lithium- and sodium-ion battery recycling technologies and by using carbon as a buffer to prevent volume expansion, lead-based materials could become a viable contender for high-energy, low-cost anodes. In this work, we show novel Pb-O-C composite anodes synthesized by simple high energy ball milling process. The electrochemical data tested in sodium cells show higher reversible capacity and improved cycle stability when compared to previously reported data of lead and lead oxides materials.139, 149 The reaction mechanism and effect of composite structure in the improved performance were investigated. 88PDF Image | China solar seawater battery
