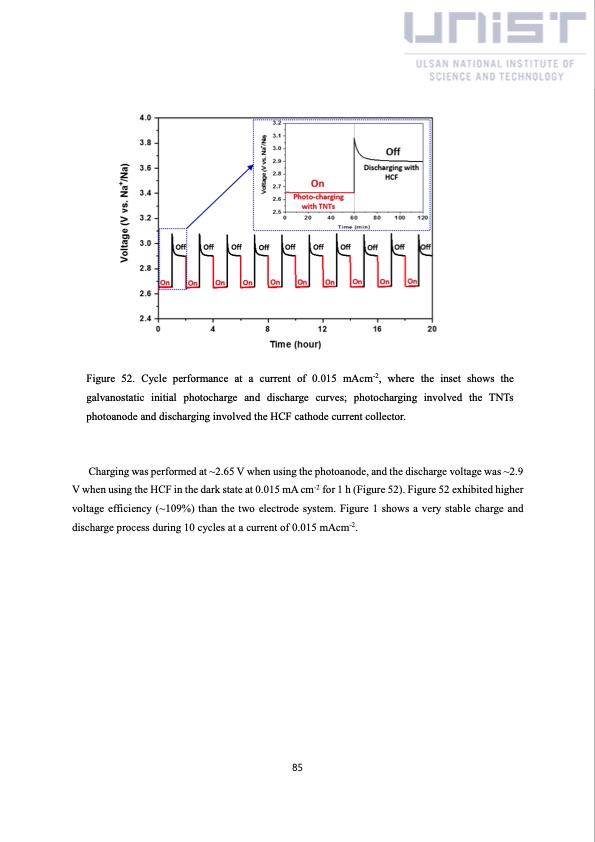

Figure 52. Cycle performance at a current of 0.015 mAcm-2, where the inset shows the galvanostatic initial photocharge and discharge curves; photocharging involved the TNTs photoanode and discharging involved the HCF cathode current collector. Charging was performed at ~2.65 V when using the photoanode, and the discharge voltage was ~2.9 V when using the HCF in the dark state at 0.015 mA cm-2 for 1 h (Figure 52). Figure 52 exhibited higher voltage efficiency (~109%) than the two electrode system. Figure 1 shows a very stable charge and discharge process during 10 cycles at a current of 0.015 mAcm-2. 85PDF Image | China solar seawater battery
