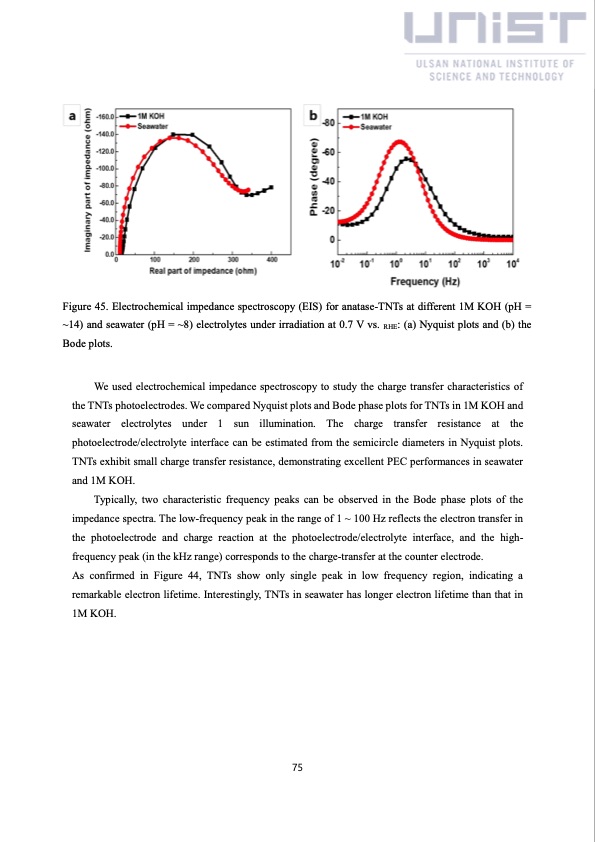

Figure 45. Electrochemical impedance spectroscopy (EIS) for anatase-TNTs at different 1M KOH (pH = ~14) and seawater (pH = ~8) electrolytes under irradiation at 0.7 V vs. RHE: (a) Nyquist plots and (b) the Bode plots. We used electrochemical impedance spectroscopy to study the charge transfer characteristics of the TNTs photoelectrodes. We compared Nyquist plots and Bode phase plots for TNTs in 1M KOH and seawater electrolytes under 1 sun illumination. The charge transfer resistance at the photoelectrode/electrolyte interface can be estimated from the semicircle diameters in Nyquist plots. TNTs exhibit small charge transfer resistance, demonstrating excellent PEC performances in seawater and 1M KOH. Typically, two characteristic frequency peaks can be observed in the Bode phase plots of the impedance spectra. The low-frequency peak in the range of 1 ~ 100 Hz reflects the electron transfer in the photoelectrode and charge reaction at the photoelectrode/electrolyte interface, and the high- frequency peak (in the kHz range) corresponds to the charge-transfer at the counter electrode. As confirmed in Figure 44, TNTs show only single peak in low frequency region, indicating a remarkable electron lifetime. Interestingly, TNTs in seawater has longer electron lifetime than that in 1M KOH. 75PDF Image | China solar seawater battery
