Text from PDF Page: 078

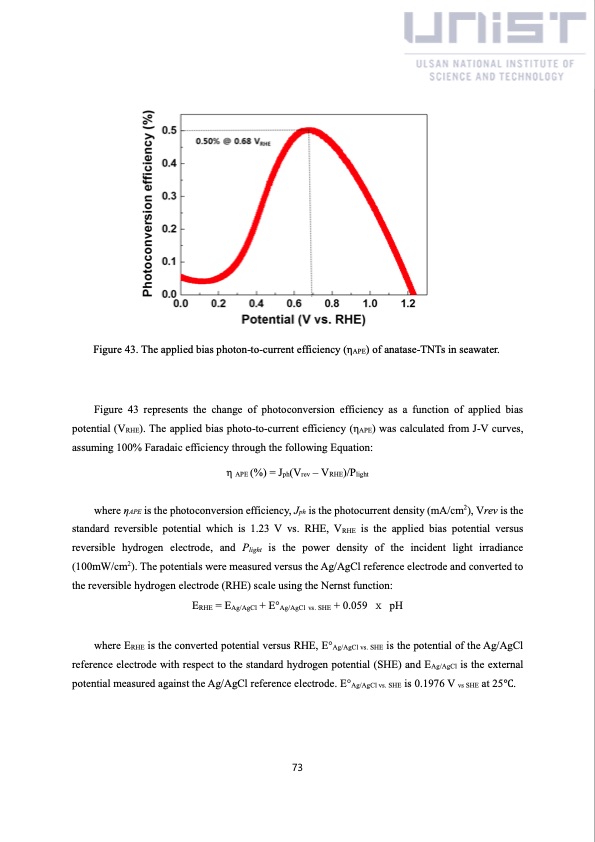

Figure 43. The applied bias photon-to-current efficiency (ηAPE) of anatase-TNTs in seawater. Figure 43 represents the change of photoconversion efficiency as a function of applied bias potential (VRHE). The applied bias photo-to-current efficiency (ηAPE) was calculated from J-V curves, assuming 100% Faradaic efficiency through the following Equation: η APE (%) = Jph(Vrev – VRHE)/Plight where ηAPE is the photoconversion efficiency, Jph is the photocurrent density (mA/cm2), Vrev is the standard reversible potential which is 1.23 V vs. RHE, VRHE is the applied bias potential versus reversible hydrogen electrode, and Plight is the power density of the incident light irradiance (100mW/cm2). The potentials were measured versus the Ag/AgCl reference electrode and converted to the reversible hydrogen electrode (RHE) scale using the Nernst function: ERHE = EAg/AgCl + E°Ag/AgCl vs. SHE + 0.059 x pH where ERHE is the converted potential versus RHE, E°Ag/AgCl vs. SHE is the potential of the Ag/AgCl reference electrode with respect to the standard hydrogen potential (SHE) and EAg/AgCl is the external potential measured against the Ag/AgCl reference electrode. E°Ag/AgCl vs. SHE is 0.1976 V vs SHE at 25°C. 73PDF Image | China solar seawater battery
