PDF Publication Title:
Text from PDF Page: 009

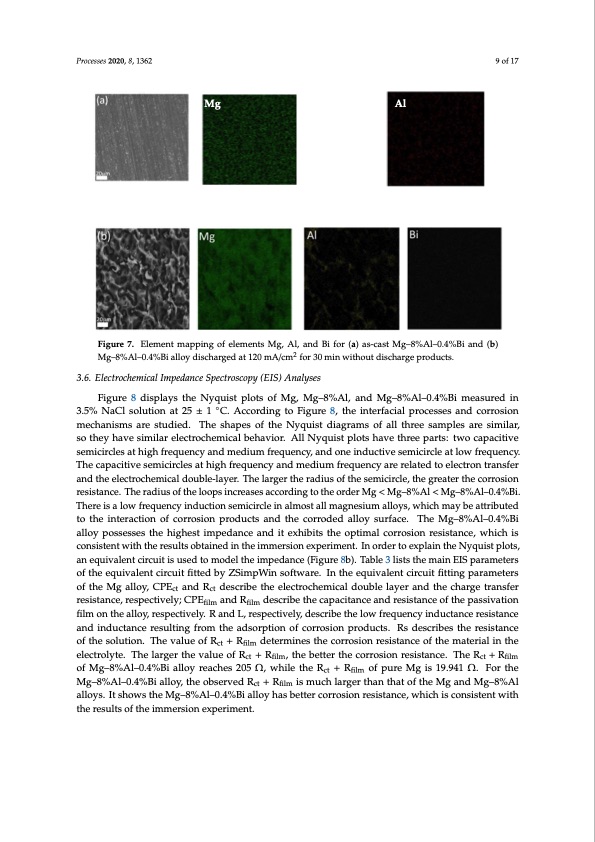

Processes 2020, 8, x FOR PEER REVIEW 9 of 17 passivation film. Therefore, the discharge performance and utilization efficiency of the battery were Processes 2020, 8, 1362 9 of 17 improved. Mg Al Figure 7. Element mapping of elements Mg, Al, and Bi for (a) as-cast Mg–8%Al–0.4%Bi and (b) Figure 7. Element mapping of elements Mg, Al, and Bi for (a) as-cast Mg–8%Al–0.4%Bi and (b) Mg– Mg–8%Al–0.4%Bi alloy discharged at 120 mA/cm2 for 30 min without discharge products. 8%Al–0.4%Bi alloy discharged at 120 mA/cm2 for 30 min without discharge products. 3.6. Electrochemical Impedance Spectroscopy (EIS) Analyses 3.6. Electrochemical Impedance Spectroscopy (EIS) Analyses Figure 8 displays the Nyquist plots of Mg, Mg–8%Al, and Mg–8%Al–0.4%Bi measured in Figure 8 displays the Nyquist plots of Mg, Mg–8%Al, and Mg–8%Al–0.4%Bi measured in 3.5% 3.5% NaCl solution at 25 ± 1 ◦C. According to Figure 8, the interfacial processes and corrosion NaCl solution at 25 ± 1 °C. According to Figure 8, the interfacial processes and corrosion mechanisms mechanisms are studied. The shapes of the Nyquist diagrams of all three samples are similar, are studied. The shapes of the Nyquist diagrams of all three samples are similar, so they have similar so they have similar electrochemical behavior. All Nyquist plots have three parts: two capacitive electrochemical behavior. All Nyquist plots have three parts: two capacitive semicircles at high semicircles at high frequency and medium frequency, and one inductive semicircle at low frequency. frequency and medium frequency, and one inductive semicircle at low frequency. The capacitive The capacitive semicircles at high frequency and medium frequency are related to electron transfer semicircles at high frequency and medium frequency are related to electron transfer and the and the electrochemical double-layer. The larger the radius of the semicircle, the greater the corrosion electrochemical double-layer. The larger the radius of the semicircle, the greater the corrosion resistance. The radius of the loops increases according to the order Mg < Mg–8%Al < Mg–8%Al–0.4%Bi. resistance. The radius of the loops increases according to the order Mg < Mg–8%Al < Mg–8%Al– 0.4%Bi. There is a low frequency induction semicircle in almost all magnesium alloys, which may be to athtteribiuntedratcotitohne oinftecroarcrtoiosnioonf pcorrordousicotns parnoduthctes aconrdrothdedcorarlolodyedsualrlfoayces.urfTahce. MThge–M8%g–A8l%–0A.4l–%Bi allo0.y4%pBoissaellsosyespotshseshseigshtheesthimghpeestdiamnpcedandceiatnedxhitiebxithsibtihtsethoeptoipmtiaml aclocrorrorsoisoinonrreessiissttance, whicichh is conisicsotennsitswteintthwthitehrtehseulrtessoublttsaoinbetadininedthien itmhemimermsioernsieoxnpexripmereinmt.enInt. oInrdoerdteor etxopelxapinlatihnethNeyNquyqisutipstlots, There is a low frequency induction semicircle in almost all magnesium alloys, which may be attributed plots, an equivalent circuit is used to model the impedance (Figure 8b). Table 3 lists the main EIS an equivalent circuit is used to model the impedance (Figure 8b). Table 3 lists the main EIS parameters parameters of the equivalent circuit fitted by ZSimpWin software. In the equivalent circuit fitting of the equivalent circuit fitted by ZSimpWin software. In the equivalent circuit fitting parameters parameters of the Mg alloy, CPEct and Rct describe the electrochemical double layer and the charge of the Mg alloy, CPEct and Rct describe the electrochemical double layer and the charge transfer transfer resistance, respectively; CPEfilm and Rfilm describe the capacitance and resistance of the resistance, respectively; CPEfilm and Rfilm describe the capacitance and resistance of the passivation passivation film on the alloy, respectively. R and L, respectively, describe the low frequency film on the alloy, respectively. R and L, respectively, describe the low frequency inductance resistance inductance resistance and inductance resulting from the adsorption of corrosion products. Rs and inductance resulting from the adsorption of corrosion products. Rs describes the resistance describes the resistance of the solution. The value of Rct + Rfilm determines the corrosion resistance of of the solution. The value of Rct + Rfilm determines the corrosion resistance of the material in the the material in the electrolyte. The larger the value of Rct + Rfilm, the better the corrosion resistance. electrolyte. The larger the value of R + R ct film ct film , the better the corrosion resistance. The R + R The Rct + Rfilm of Mg–8%Al–0.4%Bi alloy reaches 205 Ω, while the Rct + Rfilm of pure Mg is 19.941 Ω. of Mg–8%Al–0.4%Bi alloy reaches 205 Ω, while the R + R of pure Mg is 19.941 Ω. For the ct film For the Mg–8%Al–0.4%Bi alloy, the observed Rct + Rfilm is much larger than that of the Mg and Mg– Mg–8%Al–0.4%Bi alloy, the observed R + R is much larger than that of the Mg and Mg–8%Al ct film 8%Al alloys. It shows the Mg–8%Al–0.4%Bi alloy has better corrosion resistance, which is consistent alloys. It shows the Mg–8%Al–0.4%Bi alloy has better corrosion resistance, which is consistent with with the results of the immersion experiment. the results of the immersion experiment.PDF Image | Alloy Anode for Seawater Batteries and Related Mechanisms
PDF Search Title:
Alloy Anode for Seawater Batteries and Related MechanismsOriginal File Name Searched:
processes-08-01362.pdfDIY PDF Search: Google It | Yahoo | Bing
Product and Development Focus for Infinity Turbine
ORC Waste Heat Turbine and ORC System Build Plans: All turbine plans are $10,000 each. This allows you to build a system and then consider licensing for production after you have completed and tested a unit.Redox Flow Battery Technology: With the advent of the new USA tax credits for producing and selling batteries ($35/kW) we are focussing on a simple flow battery using shipping containers as the modular electrolyte storage units with tax credits up to $140,000 per system. Our main focus is on the salt battery. This battery can be used for both thermal and electrical storage applications. We call it the Cogeneration Battery or Cogen Battery. One project is converting salt (brine) based water conditioners to simultaneously produce power. In addition, there are many opportunities to extract Lithium from brine (salt lakes, groundwater, and producer water).Salt water or brine are huge sources for lithium. Most of the worlds lithium is acquired from a brine source. It's even in seawater in a low concentration. Brine is also a byproduct of huge powerplants, which can now use that as an electrolyte and a huge flow battery (which allows storage at the source).We welcome any business and equipment inquiries, as well as licensing our turbines for manufacturing.| CONTACT TEL: 608-238-6001 Email: greg@infinityturbine.com | RSS | AMP |
