Text from PDF Page: 001

(19)United States (12)PatentApplicationPublication (10)Pub.N0.:US2012/0216536A1 Ma etal. (54)SUPERCRITICALCARBONDIOXIDE POWER CYCLE CONFIGURATION FOR USE INCONCENTRATING SOLAR POWER SYSTEMS (43)Pub.Date: Aug.30,2012 (52) US.Cl.......................................................60/641.8 (57) ABSTRACT Methodsandsolarpowergenerationsystemsincludinga Working ?uid circuit providing for the ?oW of supercritical carbon dioxide (S-CO2) therein. The methods and systems mayalsoincludeasolarenergyreceiverinthermalcommu nication With the Working ?uid circuit providing for solar heating of the S-CO2 Working ?uid; a poWer turbine in ?uid communication With the S-CO2; a generator mechanically coupled to the poWer turbine; a compressor turbine in ?uid communication With the S-CO2 and a compressor mechani cally coupled to the compressor turbine such that the com pressoriscon?guredtocompresstheS-CO2Withinaportion ofthe Working ?uid Circuit The methods and Systems may optionally include a secondary poWer block inthermal com munication With a primary poWer block. The methods and systemsmayoptionallyincludethermalenergystorage.Vari ous embodiments may be implemented inamodular fashion andlocatedonorWithinasolarenergytoWer. //—100 (75) Inventors: (73) Assigneez (21) Appl_No. (22) Filed; éilgvelslhr?tgloikggl’di?) g'’’ AllianceForsustainableEnergy, LLC GoldenCO(Us) ’’ 13/403,661 Feb 23,2012 Related US, Application Data __ _ _ (60) Prov1s1onal applicatlon No. 61/446,735, ?led on Feb. 25’ 2011' (51) Int,Cl, F03G 6/00 (200601) P bl_ _ Cl _? _ u lcatlon assl canon 105 ' ‘ 102/ v i 26 K- 120 US 20120216536A1 32? A r—128 104\ ' 130 13 '7; V f 108 2 4 E118{116 Ik 1F c/'\ 12,2/\/ - 14 114 10 ~10s

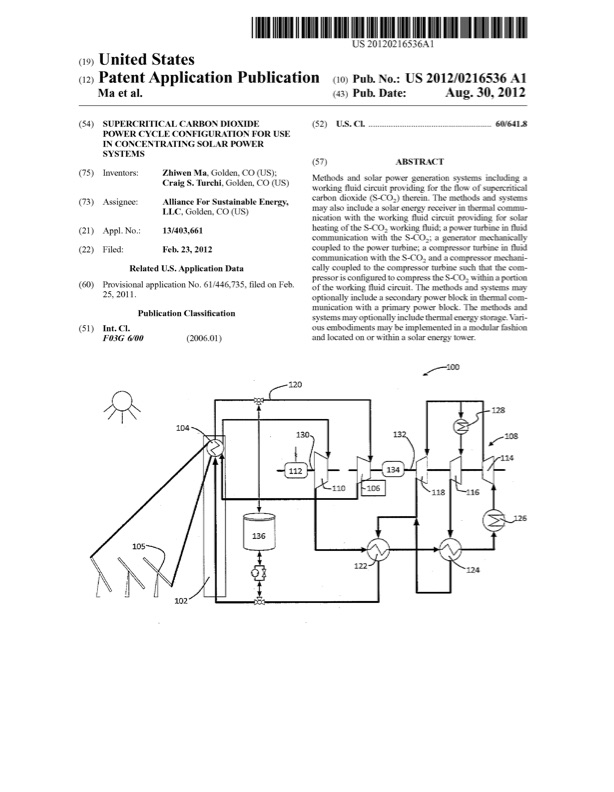

PDF Image | SCO2 POWER CYCLE CONFIGURATION CONCENTRATING SOLAR

sco2-power-cycle-configuration-concentrating-solar-001
