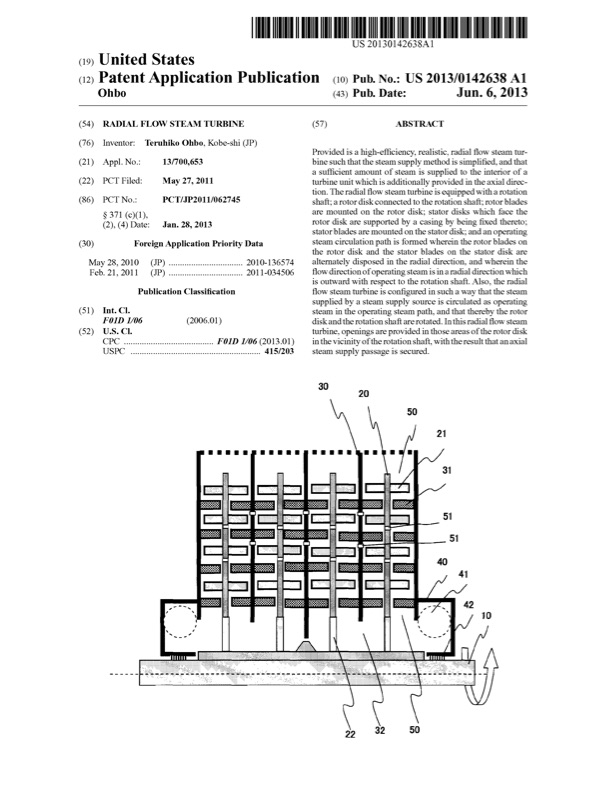

(19)United States (12)PatentApplicationPublication (10)Pub.No.:US2013/0142638A1 Ohbo (54) RADIALFLOWSTEAMTURBINE (76) Inventor: TeruhikoOhbo,Kobe-shi(JP) (43)Pub.Date: Jun. 6,2013 (57) ABSTRACT Providedisahigh-ef?ciency,realistic,radial?oW steamtur binesuchthatthesteamsupplymethodissimpli?ed,andthat a suf?cient amount of steam is supplied to the interior of a turbineunitWhichisadditionallyprovidedintheaxialdirec tion.Theradial?oW steamturbineisequippedWitharotation shaft;arotordiskconnectedtotherotationshaft;rotorblades are mounted on the rotor disk; stator disks Which face the rotor disk are supported by a casing by being ?xed thereto; statorblades aremounted on the statordisk; and an operating steam circulation path is formed Wherein the rotor blades on the rotor disk and the stator blades on the stator disk are alternatelydisposedintheradialdirection,andWhereinthe How directionofoperatingsteamisinaradialdirectionWhich is outWard With respect to the rotation shaft. Also, the radial ?oW steamturbineiscon?guredinsuchaWaythatthesteam supplied by a steam supply source is circulated as operating steam in the operating steam path, and that thereby the rotor diskandtherotationshaftarerotated.Inthisradial?oW steam turbine,openingsareprovidedinthoseareasoftherotordisk inthevicinityoftherotationshaft,Withtheresultthatanaxial steamsupplypassageissecured. (21) App1.No.: 13/700,653 May 27,2011 PCT/JP2011/062745 (22) (86) PCT Filed: PCTNo.: ยง371 (0X1), (2),(4)Date: Jan.28,2013 (30) May 28,2010 (JP) ..2010-136574 Feb. 21, 2011 (JP) ................................ 2011-034506 Publication Classi?cation (51) Int.Cl. F01D 1/06 (2006.01) ForeignApplicationPriorityData (52) US.Cl. cPc .......................................F01D 1/06(2013.01) UsPc ..........................................................415/203 a I25315 til-I ' 3O 20 new , US 20130142638A1 22 32 5o 50 21 31PDF Image | RADIAL FLOW STEAM TURBINE
