PDF Publication Title:
Text from PDF Page: 001

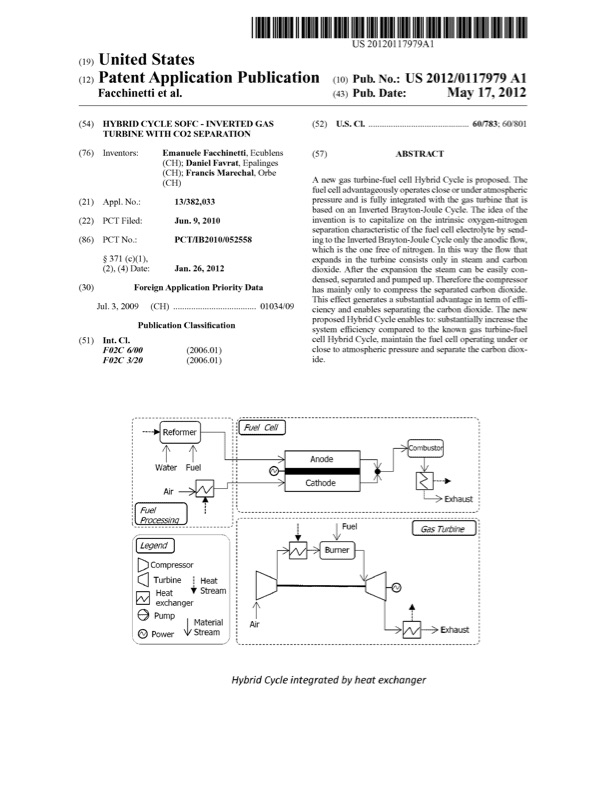

(19)United States (12)PatentApplicationPublication (10)Pub.No.:US2012/0117979A1 Facchinettietal. (54) HYBRIDCYCLESOFC-INVERTEDGAS TURBINE WITH CO2 SEPARATION (43)Pub.Date: May 17,2012 (52) US.Cl.............................................60/783;60/801 (57) ABSTRACT A neWgasturbine-fuelcellHybridCycleisproposed.The fuelcelladvantageouslyoperatescloseorunderatmospheric pressure and is fully integrated With the gas turbine that is based on an Inverted Brayton-Joule Cycle. The idea of the invention is to capitalize on the intrinsic oxygen-nitrogen separation characteristic of the fuel cell electrolyte by send ingtotheInvertedBrayton-JouleCycleonlytheanodic?oW, Which is the one free of nitrogen. In this Way the How that expands in the turbine consists only in steam and carbon dioxide. After the expansion the steam can be easily con densed,separatedandpumpedup.Thereforethecompressor has mainly only to compress the separated carbon dioxide. This effect generates a substantial advantage in term of e?i ciency and enables separating the carbon dioxide. The neW proposedHybridCycleenablesto:substantiallyincreasethe system ef?ciency compared to the known gas turbine-fuel cell Hybrid Cycle, maintain the fuel cell operating under or close to atmospheric pressure and separate the carbon diox ide. (76) Inventors: (21) App1.N0.: (22) (86) (30) EmanueleFacchinetti,Ecublens (CH);DanielFavrat,Epalinges (CH); Francis Marechal, Orbe (CH) 13/382,033 Jun. 9,2010 PCT/IB2010/052558 Jan.26,2012 ForeignApplicationPriorityData Jul.3,2009 (CH) ....................................01034/09 Publication Classi?cation PCT Filed: PCT No.: ยง371 (0X1), (2),(4)Date: (51) Int.Cl. F02C 6/00 F 02C 3/20 (2006.01) (2006.01) DCompresor (ITurbine iHeat Heat V Stream exchanger 9 Pump Power \@ Material Stream US 20120117979Al _________________________._______.___.___.___________________________/ HybridCycleintegratedbyheatexchangerPDF Image | HYBRID CYCLES OF GAS TURBINE WITH CO2 SEPARATION
PDF Search Title:
HYBRID CYCLES OF GAS TURBINE WITH CO2 SEPARATIONOriginal File Name Searched:
US20120117979.pdfDIY PDF Search: Google It | Yahoo | Bing
