PDF Publication Title:
Text from PDF Page: 002

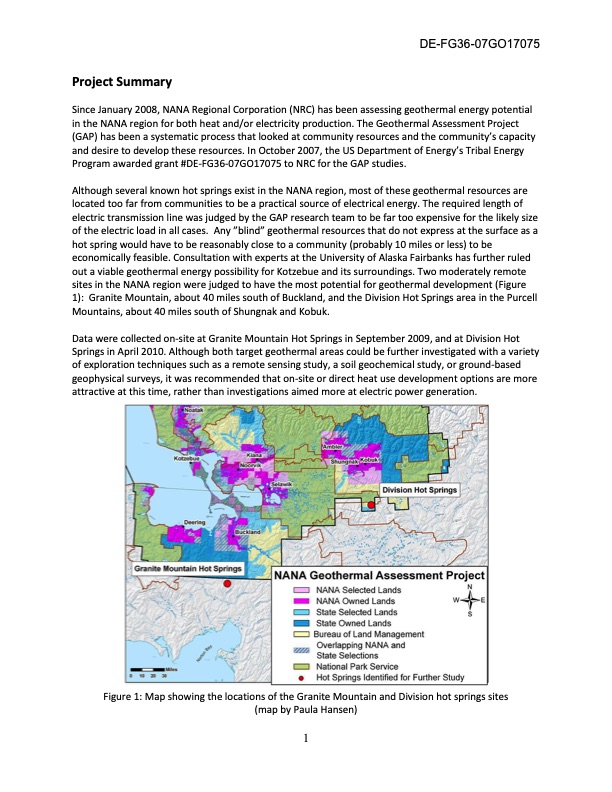

Project Summary Since January 2008, NANA Regional Corporation (NRC) has been assessing geothermal energy potential in the NANA region for both heat and/or electricity production. The Geothermal Assessment Project (GAP) has been a systematic process that looked at community resources and the community’s capacity and desire to develop these resources. In October 2007, the US Department of Energy’s Tribal Energy Program awarded grant #DE-FG36-07GO17075 to NRC for the GAP studies. Although several known hot springs exist in the NANA region, most of these geothermal resources are located too far from communities to be a practical source of electrical energy. The required length of electric transmission line was judged by the GAP research team to be far too expensive for the likely size of the electric load in all cases. Any ”blind” geothermal resources that do not express at the surface as a hot spring would have to be reasonably close to a community (probably 10 miles or less) to be economically feasible. Consultation with experts at the University of Alaska Fairbanks has further ruled out a viable geothermal energy possibility for Kotzebue and its surroundings. Two moderately remote sites in the NANA region were judged to have the most potential for geothermal development (Figure 1): Granite Mountain, about 40 miles south of Buckland, and the Division Hot Springs area in the Purcell Mountains, about 40 miles south of Shungnak and Kobuk. Data were collected on-site at Granite Mountain Hot Springs in September 2009, and at Division Hot Springs in April 2010. Although both target geothermal areas could be further investigated with a variety of exploration techniques such as a remote sensing study, a soil geochemical study, or ground-based geophysical surveys, it was recommended that on-site or direct heat use development options are more attractive at this time, rather than investigations aimed more at electric power generation. Figure 1: Map showing the locations of the Granite Mountain and Division hot springs sites (map by Paula Hansen) DE-FG36-07GO17075 1PDF Image | US Department of Energy Tribal Energy Program
PDF Search Title:
US Department of Energy Tribal Energy ProgramOriginal File Name Searched:
NANAGAPfinal18Aug10.pdfDIY PDF Search: Google It | Yahoo | Bing
