PDF Publication Title:
Text from PDF Page: 001

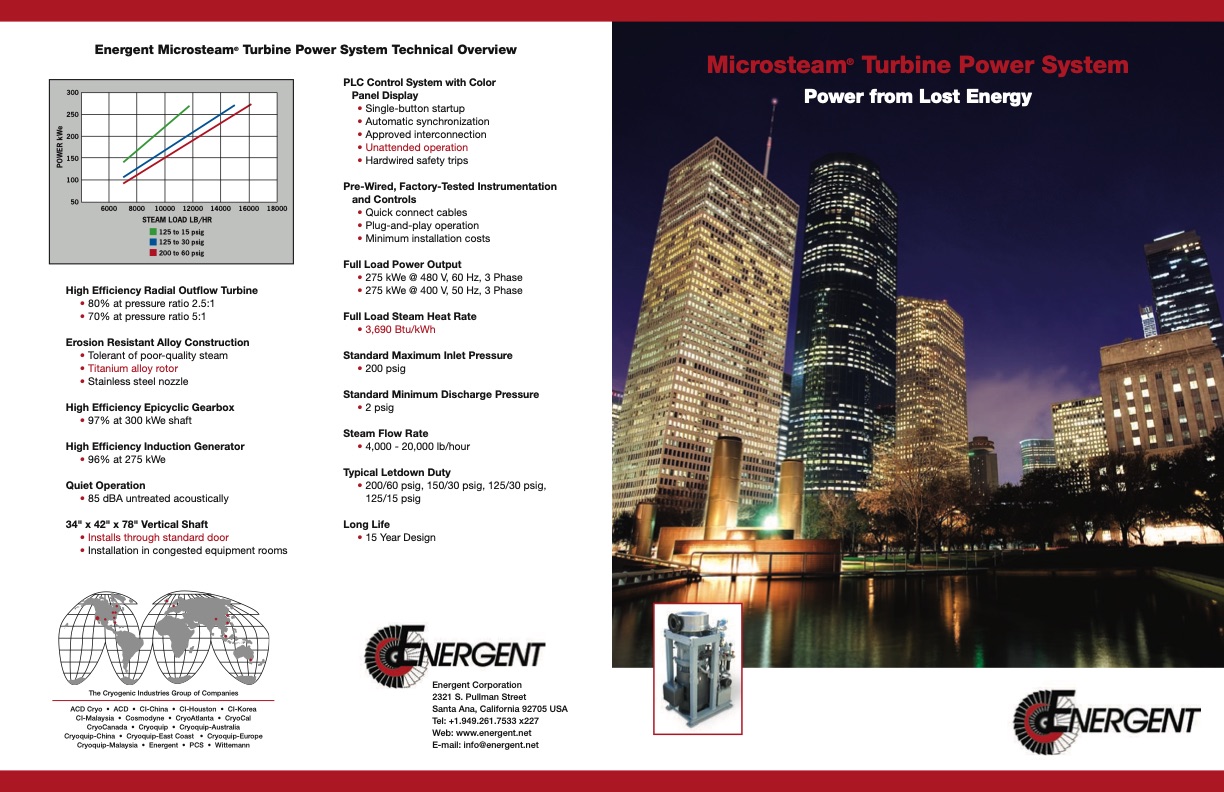

EnergentMicrosteam® TurbinePowerSystemTechnicalOverview Microsteam® Turbine Power System Power from Lost Energy High Efficiency Radial Outflow Turbine • 80% at pressure ratio 2.5:1 • 70% at pressure ratio 5:1 Erosion Resistant Alloy Construction • Tolerant of poor-quality steam • Titanium alloy rotor • Stainless steel nozzle High Efficiency Epicyclic Gearbox • 97% at 300 kWe shaft High Efficiency Induction Generator • 96% at 275 kWe Quiet Operation • 85 dBA untreated acoustically 34" x 42" x 78" Vertical Shaft • Installs through standard door • Installation in congested equipment rooms PLC Control System with Color Panel Display • Single-button startup • Automatic synchronization • Approved interconnection • Unattended operation • Hardwired safety trips Pre-Wired, Factory-Tested Instrumentation and Controls • Quick connect cables • Plug-and-play operation • Minimum installation costs Full Load Power Output • 275 kWe @ 480 V, 60 Hz, 3 Phase • 275 kWe @ 400 V, 50 Hz, 3 Phase Full Load Steam Heat Rate • 3,690 Btu/kWh Standard Maximum Inlet Pressure • 200 psig Standard Minimum Discharge Pressure • 2 psig Steam Flow Rate • 4,000 - 20,000 lb/hour Typical Letdown Duty • 200/60 psig, 150/30 psig, 125/30 psig, 125/15 psig Long Life • 15 Year Design Energent Corporation 2321 S. Pullman Street Santa Ana, California 92705 USA Tel: +1.949.261.7533 x227 Web: www.energent.net E-mail: info@energent.net The Cryogenic Industries Group of Companies ACD Cryo • ACD • CI-China • CI-Houston • CI-Korea CI-Malaysia • Cosmodyne • CryoAtlanta • CryoCal CryoCanada • Cryoquip • Cryoquip-Australia Cryoquip-China • Cryoquip-East Coast • Cryoquip-Europe Cryoquip-Malaysia • Energent • PCS • WittemannPDF Image | Energent Microsteam
PDF Search Title:
Energent MicrosteamOriginal File Name Searched:
Microsteam_Brochure.pdfDIY PDF Search: Google It | Yahoo | Bing
