PDF Publication Title:
Text from PDF Page: 018

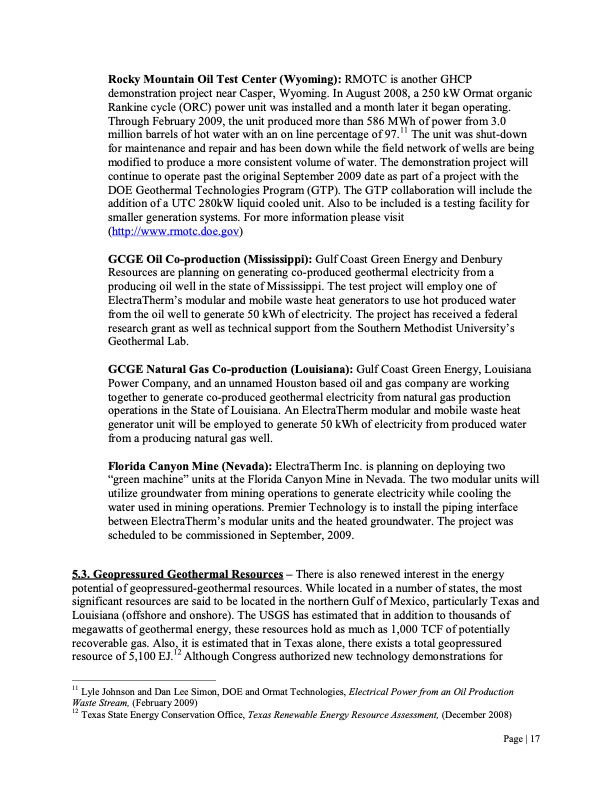

Rocky Mountain Oil Test Center (Wyoming): RMOTC is another GHCP demonstration project near Casper, Wyoming. In August 2008, a 250 kW Ormat organic Rankine cycle (ORC) power unit was installed and a month later it began operating. Through February 2009, the unit produced more than 586 MWh of power from 3.0 million barrels of hot water with an on line percentage of 97.11 The unit was shut-down for maintenance and repair and has been down while the field network of wells are being modified to produce a more consistent volume of water. The demonstration project will continue to operate past the original September 2009 date as part of a project with the DOE Geothermal Technologies Program (GTP). The GTP collaboration will include the addition of a UTC 280kW liquid cooled unit. Also to be included is a testing facility for smaller generation systems. For more information please visit (http://www.rmotc.doe.gov) GCGE Oil Co-production (Mississippi): Gulf Coast Green Energy and Denbury Resources are planning on generating co-produced geothermal electricity from a producing oil well in the state of Mississippi. The test project will employ one of ElectraThermís modular and mobile waste heat generators to use hot produced water from the oil well to generate 50 kWh of electricity. The project has received a federal research grant as well as technical support from the Southern Methodist Universityís Geothermal Lab. GCGE Natural Gas Co-production (Louisiana): Gulf Coast Green Energy, Louisiana Power Company, and an unnamed Houston based oil and gas company are working together to generate co-produced geothermal electricity from natural gas production operations in the State of Louisiana. An ElectraTherm modular and mobile waste heat generator unit will be employed to generate 50 kWh of electricity from produced water from a producing natural gas well. Florida Canyon Mine (Nevada): ElectraTherm Inc. is planning on deploying two ìgreen machineî units at the Florida Canyon Mine in Nevada. The two modular units will utilize groundwater from mining operations to generate electricity while cooling the water used in mining operations. Premier Technology is to install the piping interface between ElectraThermís modular units and the heated groundwater. The project was scheduled to be commissioned in September, 2009. 5.3. Geopressured Geothermal Resources ñ There is also renewed interest in the energy potential of geopressured-geothermal resources. While located in a number of states, the most significant resources are said to be located in the northern Gulf of Mexico, particularly Texas and Louisiana (offshore and onshore). The USGS has estimated that in addition to thousands of megawatts of geothermal energy, these resources hold as much as 1,000 TCF of potentially recoverable gas. Also, it is estimated that in Texas alone, there exists a total geopressured resource of 5,100 EJ.12 Although Congress authorized new technology demonstrations for 11 Lyle Johnson and Dan Lee Simon, DOE and Ormat Technologies, Electrical Power from an Oil Production Waste Stream, (February 2009) 12 Texas State Energy Conservation Office, Texas Renewable Energy Resource Assessment, (December 2008) Page | 17PDF Image | U.S. Geothermal Power Production and Development Update 2009
PDF Search Title:
U.S. Geothermal Power Production and Development Update 2009Original File Name Searched:
US_Geothermal_Industry_Update_Sept_29_2009_Final.pdfDIY PDF Search: Google It | Yahoo | Bing
